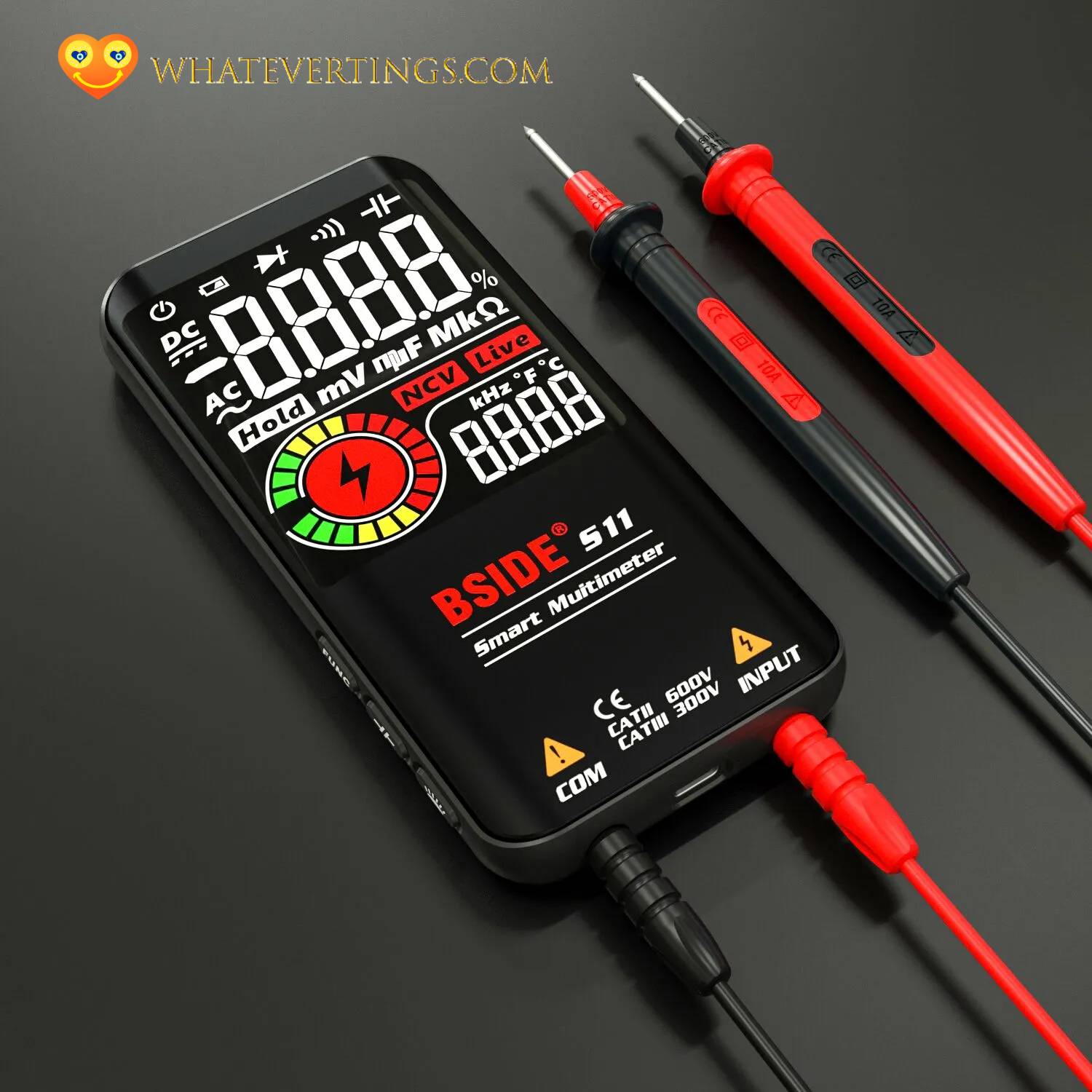

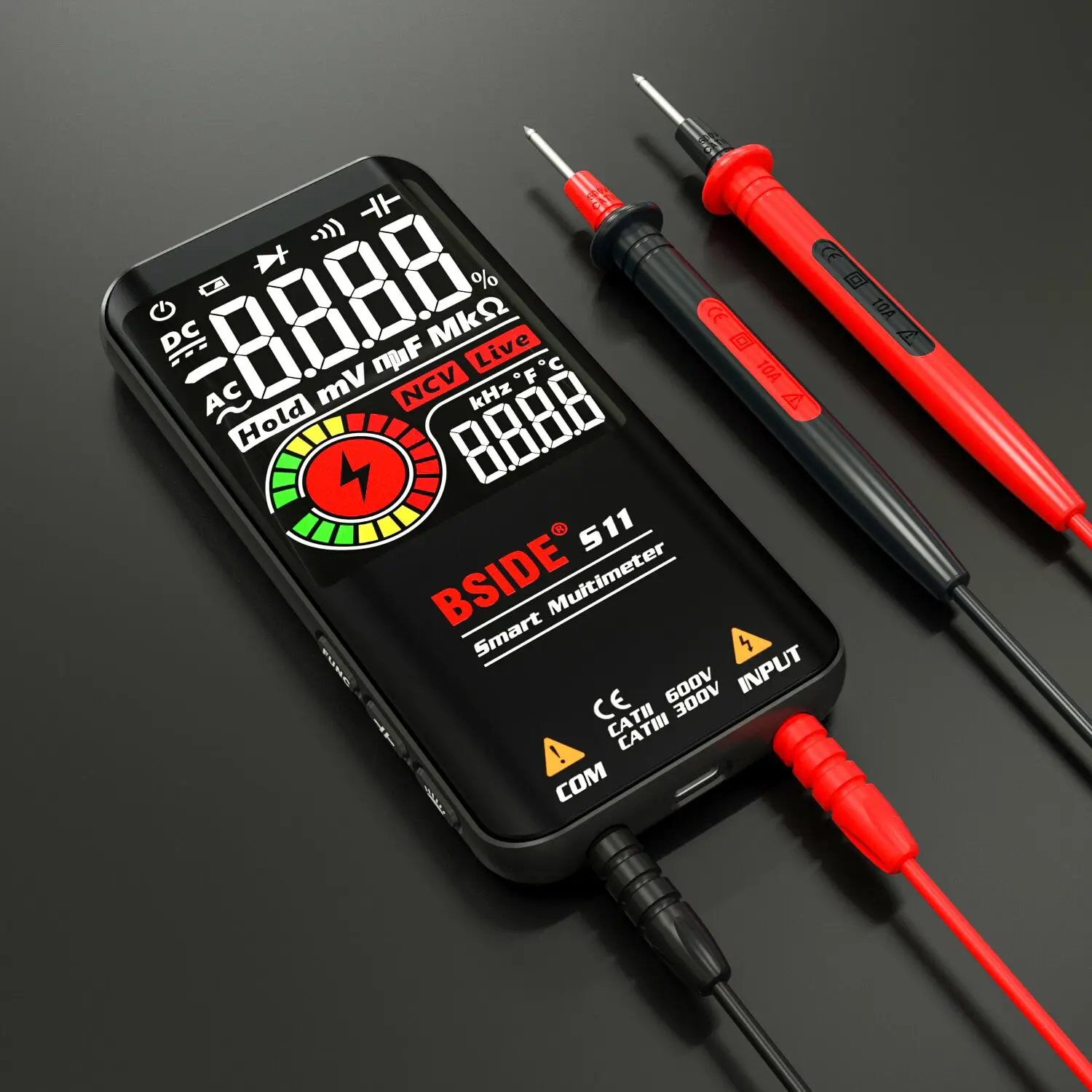

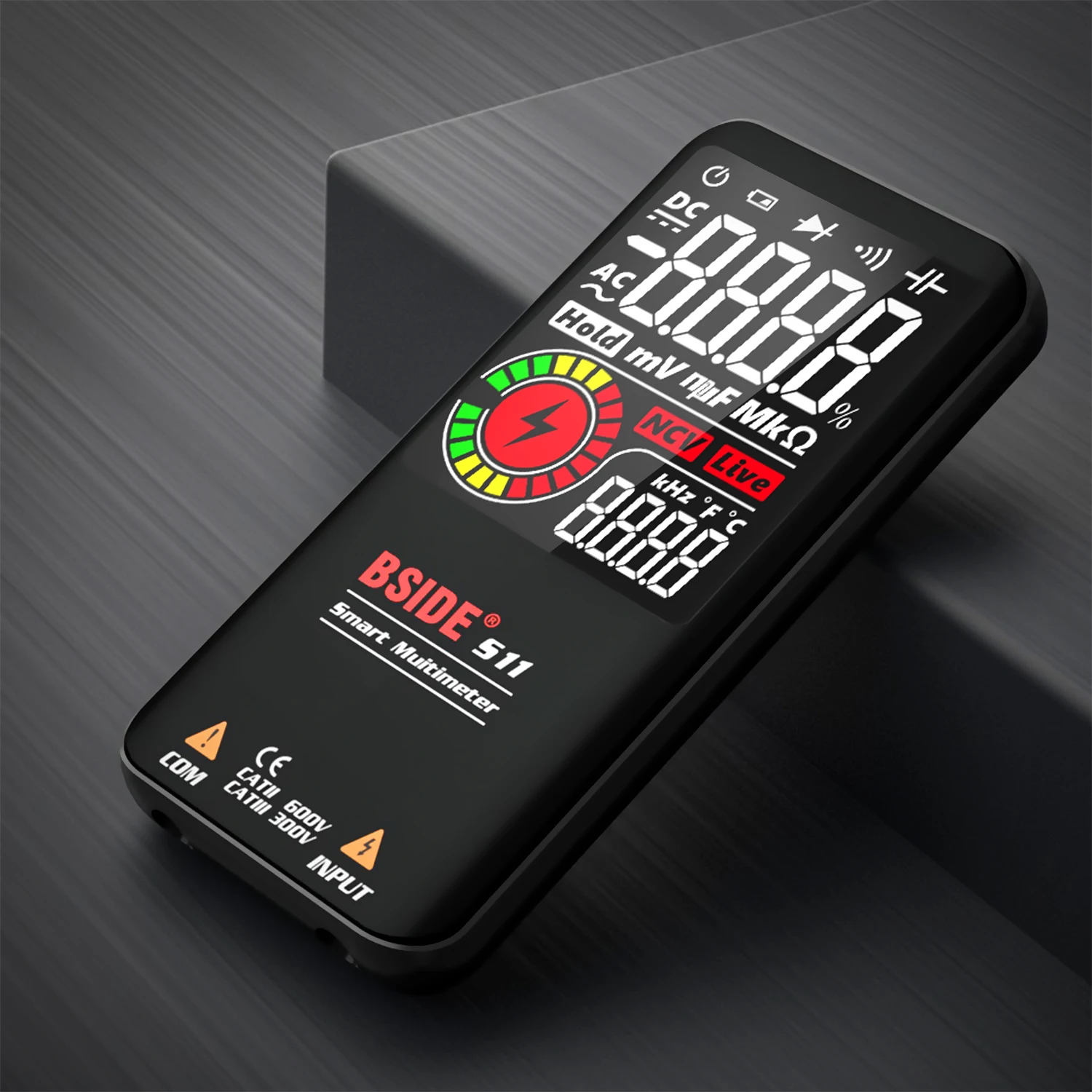

Do you know how thin it is?

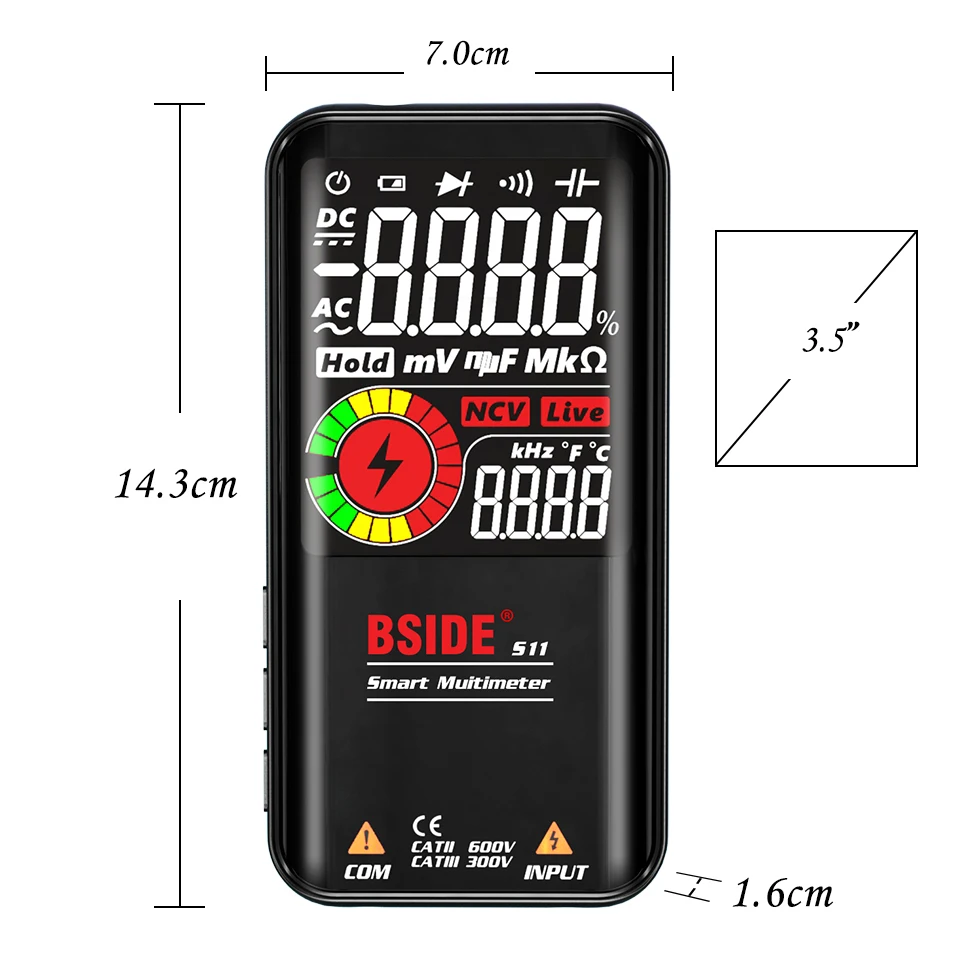

It just 16mm thickness, when you hold it you can make a joke say this is a cell phone. Really interesting. Have you ever
seen a multimeter that is thinner than it?

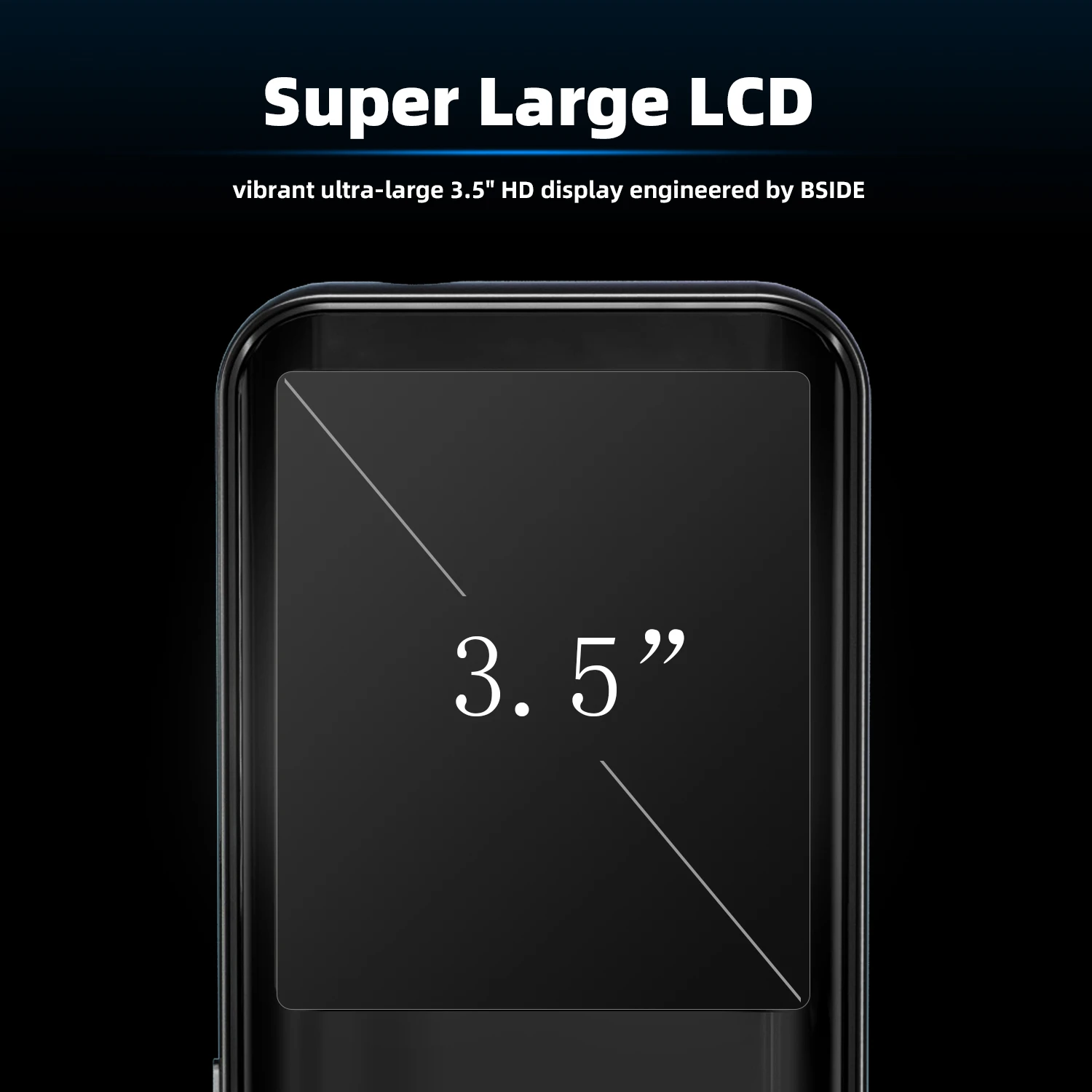

Have a guess what’s the size of the large screen?
This is a brand new style 3.5 inch super large screen multimeter.Not only the screen is super large, but also triple line
display can show both ACV and Hz on the screen, shocking your vision.
Need a multimeter that won’t leave your not-so-tech-savvy family member dumbfounded?
Maybe grandpa needs a multimeter, or your significant other isn’t so great with technology.
Or-and don’t be embarrassed-maybe you just want a multimeter for yourself that’s real simple.
S11 offer most commonly used functions without overdoing it. Here are our top five bullet points:

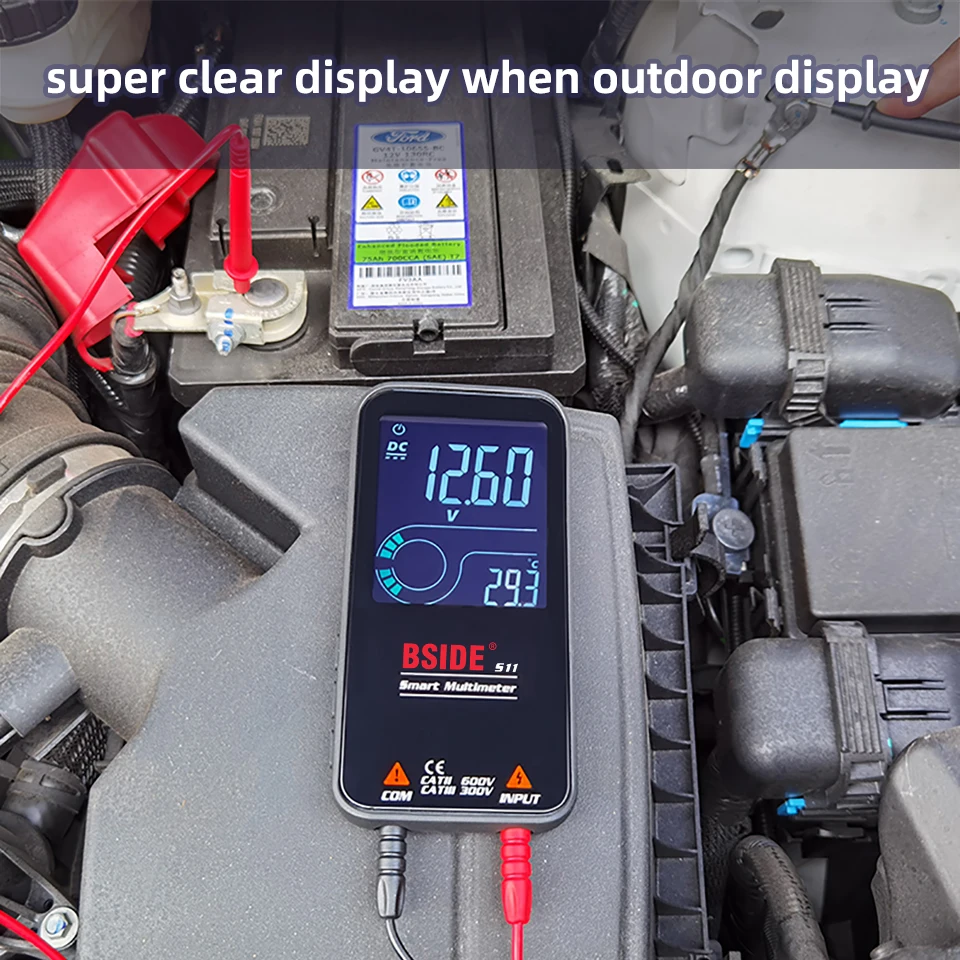

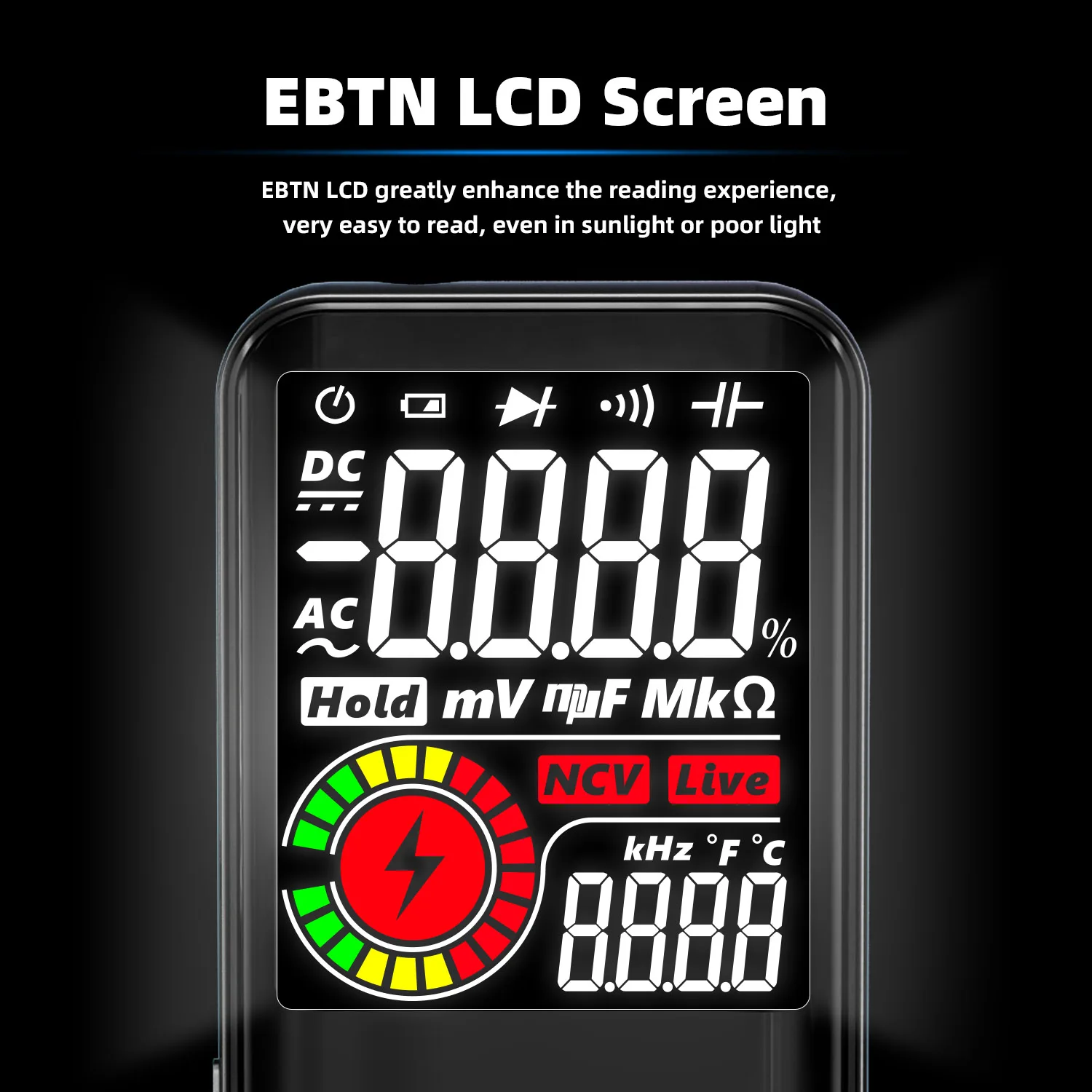

[EBTN LCD display]: The EBTN LCD display greatly enhances the reading experience. The numbers and letters with a bright black background and color analog bars are very easy to read even in bright sunlight or under low light conditions.

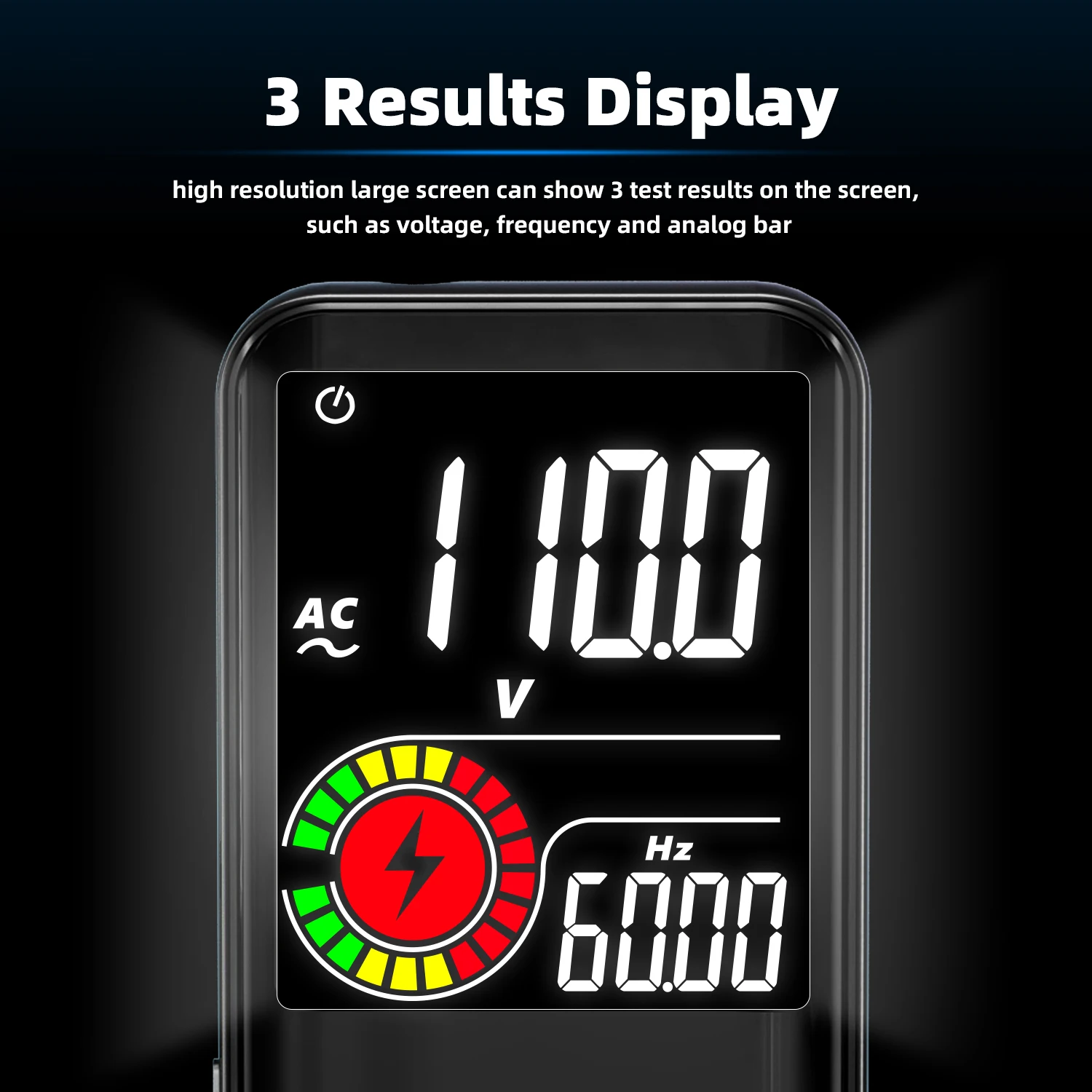

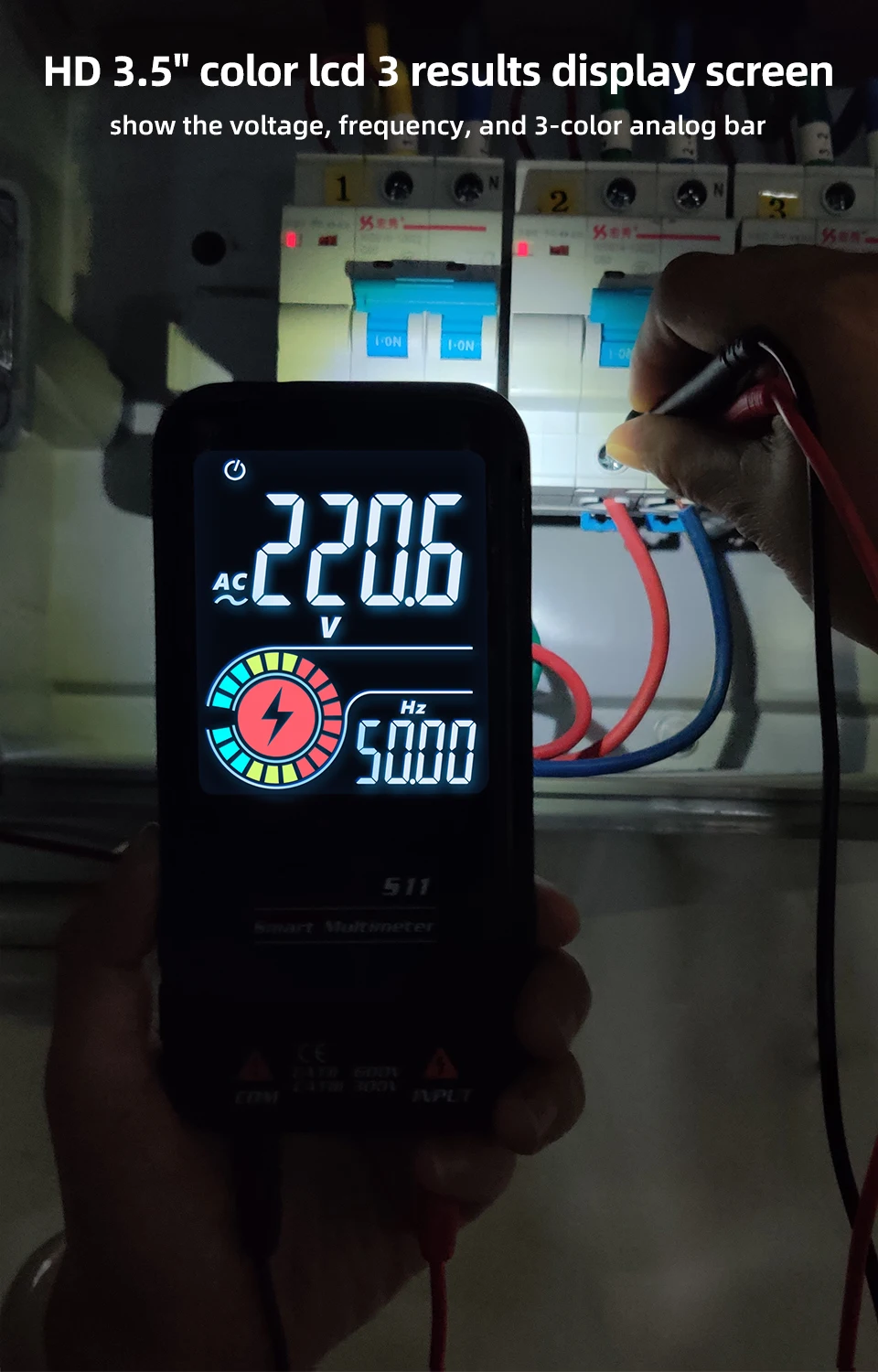

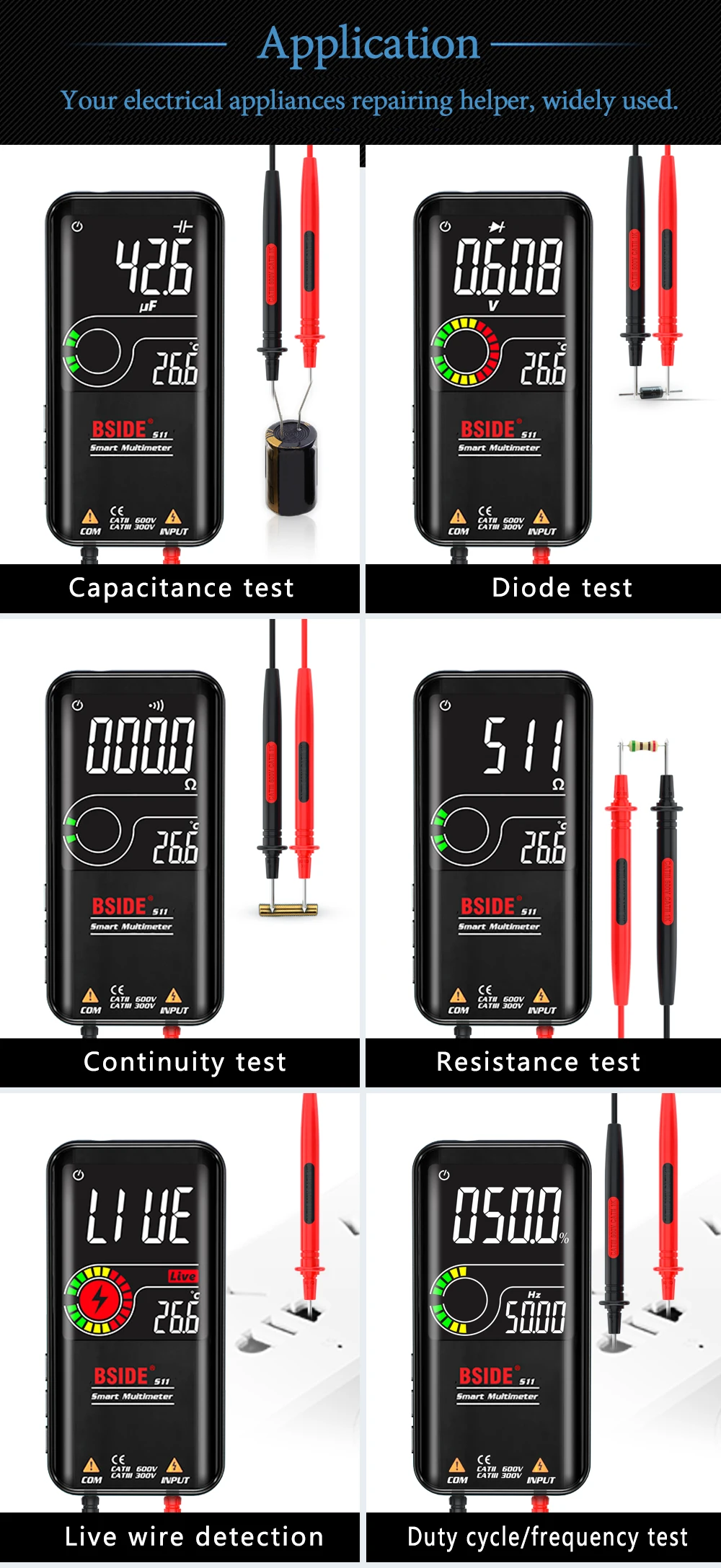

[3 Results Display]: The high-resolution large screen can display 3 test results on the screen, such as voltage, frequency and analog bars.
[Automatic identification]: Automatic identification can greatly improve test efficiency. BSIDE intelligent technology enables the multimeter to automatically identify the parameters of the test and select the required range.

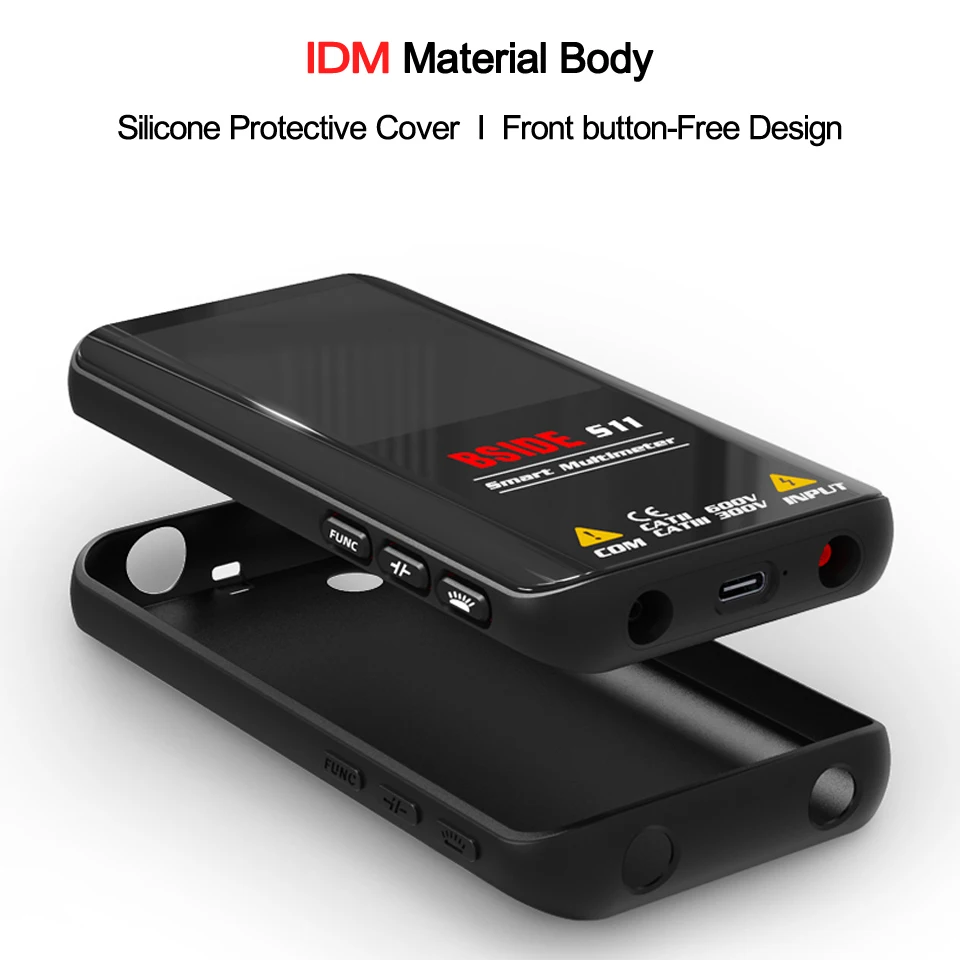

[Protective cover]: Durable protective cover to prevent vibration, friction and collision. This case is detachable and easy to replace.

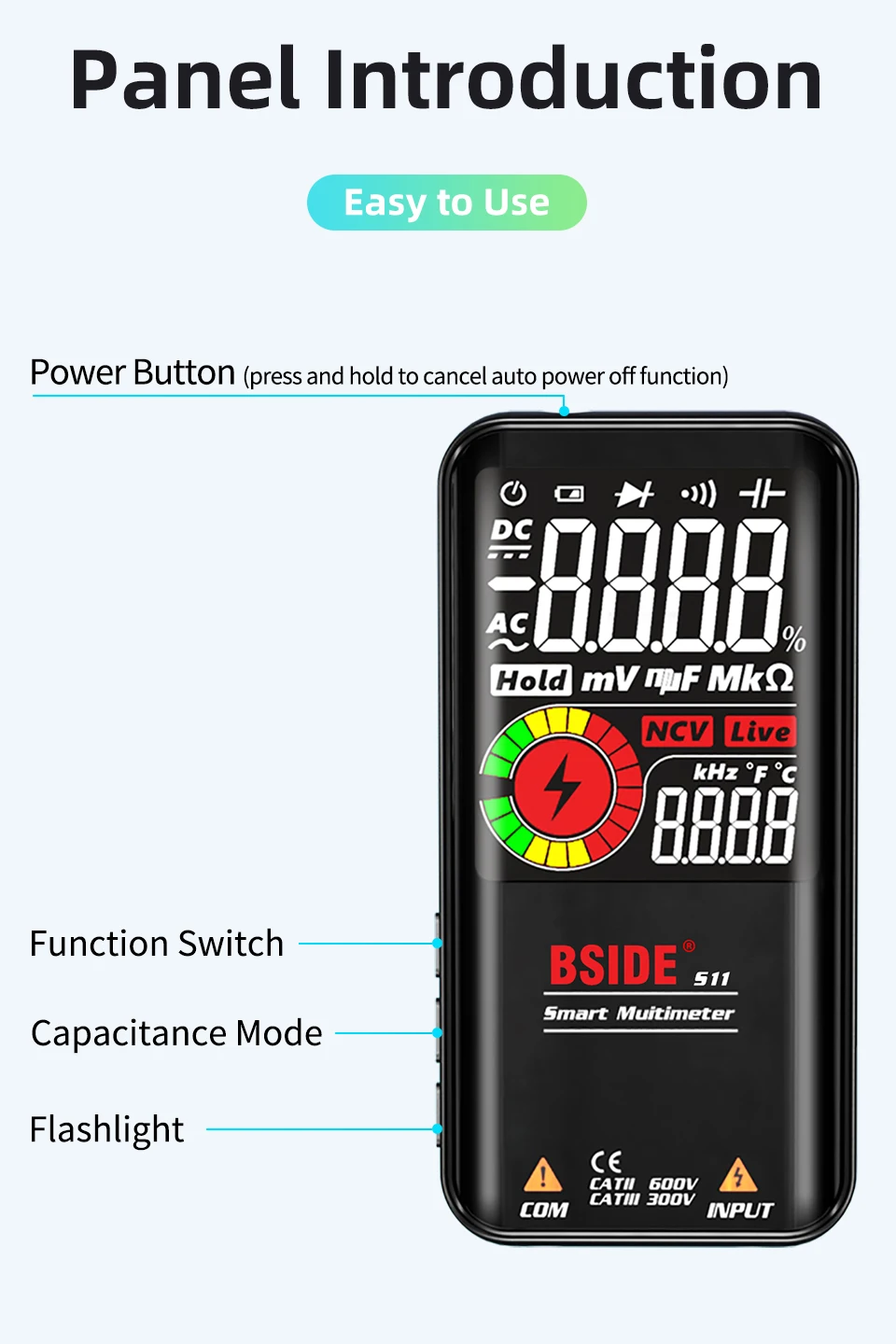

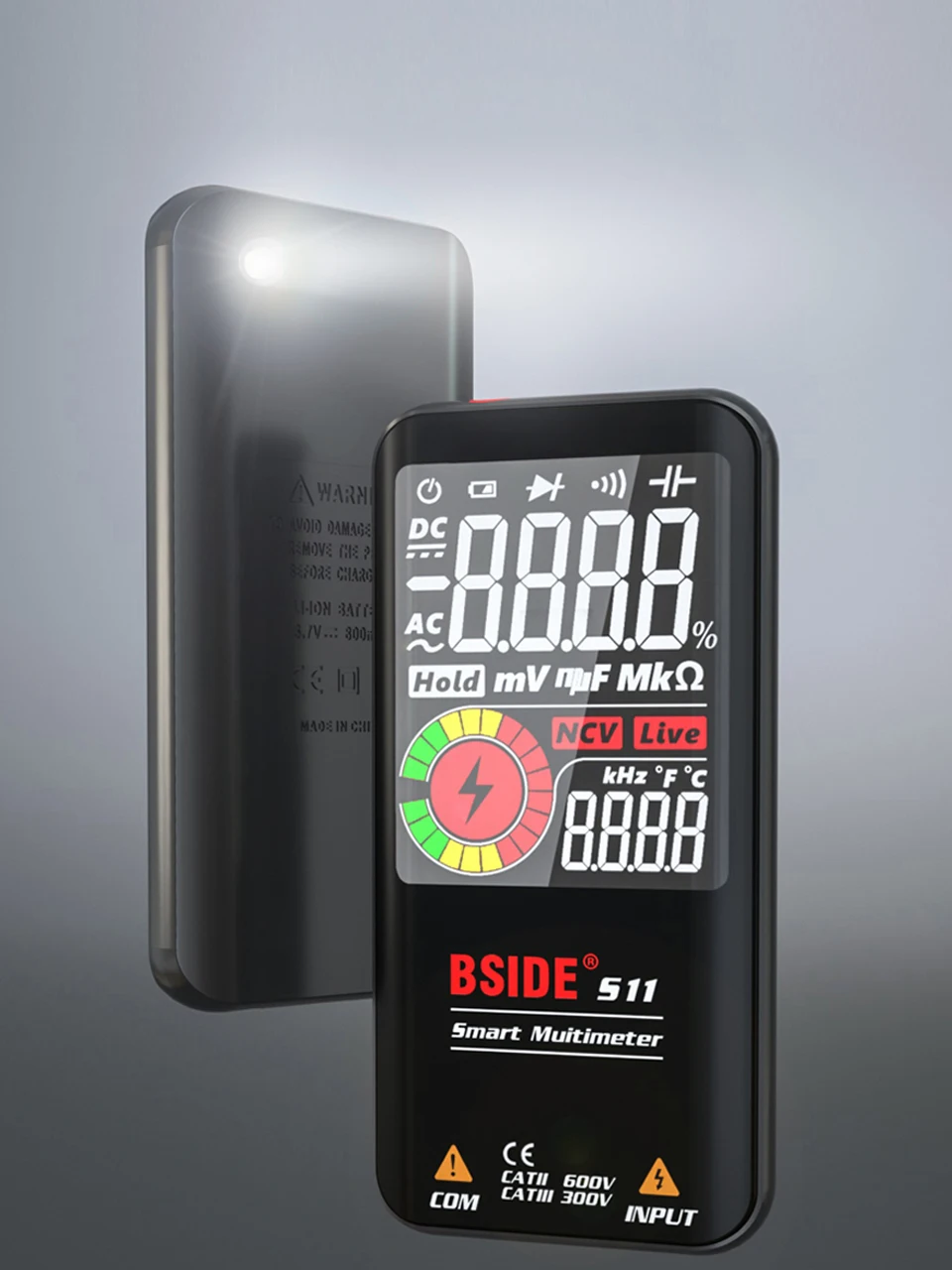

[Upgraded flashlight]: The upgraded flashlight can change the dark environment.

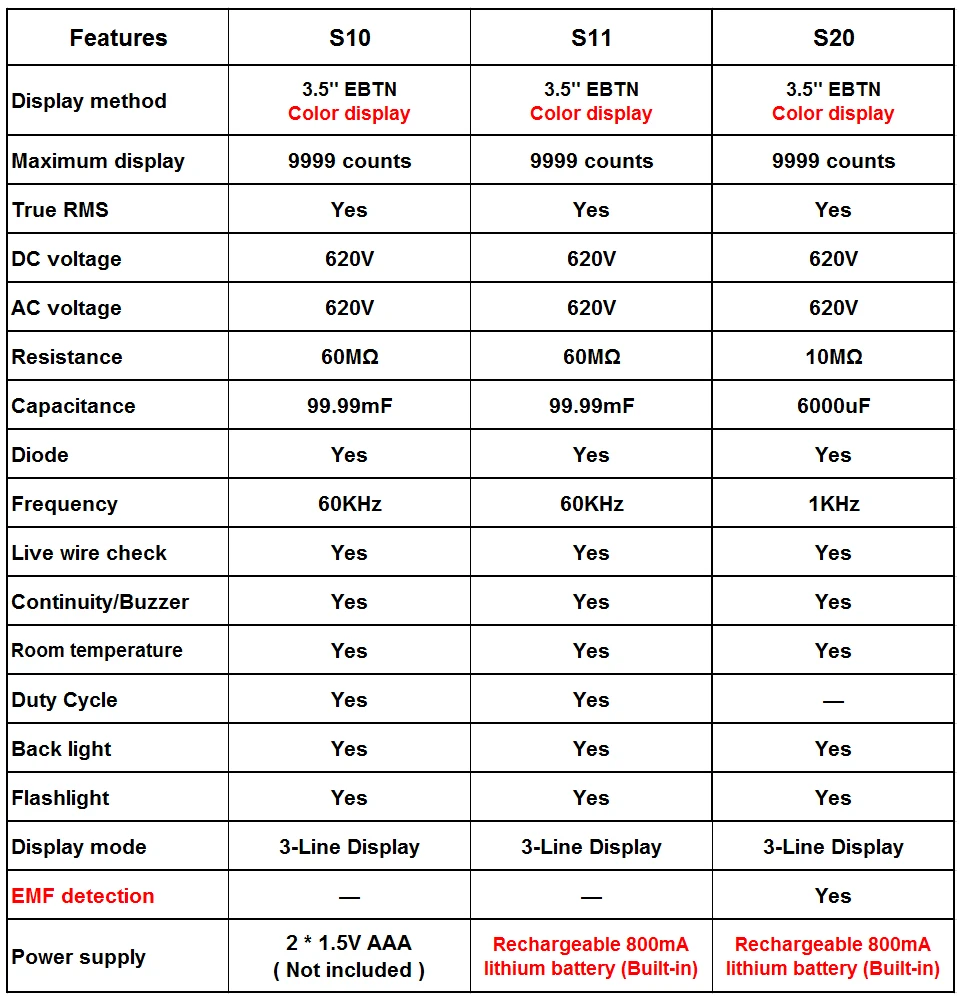

S10 Specifications:
Display: 9999 counts
Screen: 3.5 inch
DC Voltage: 0.8V-620V ±(0.5%+3); Resolution: 0.001V
AC Voltage: 2.2V-620V ±(0.5%+5); Resolution: 0.001V
Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω

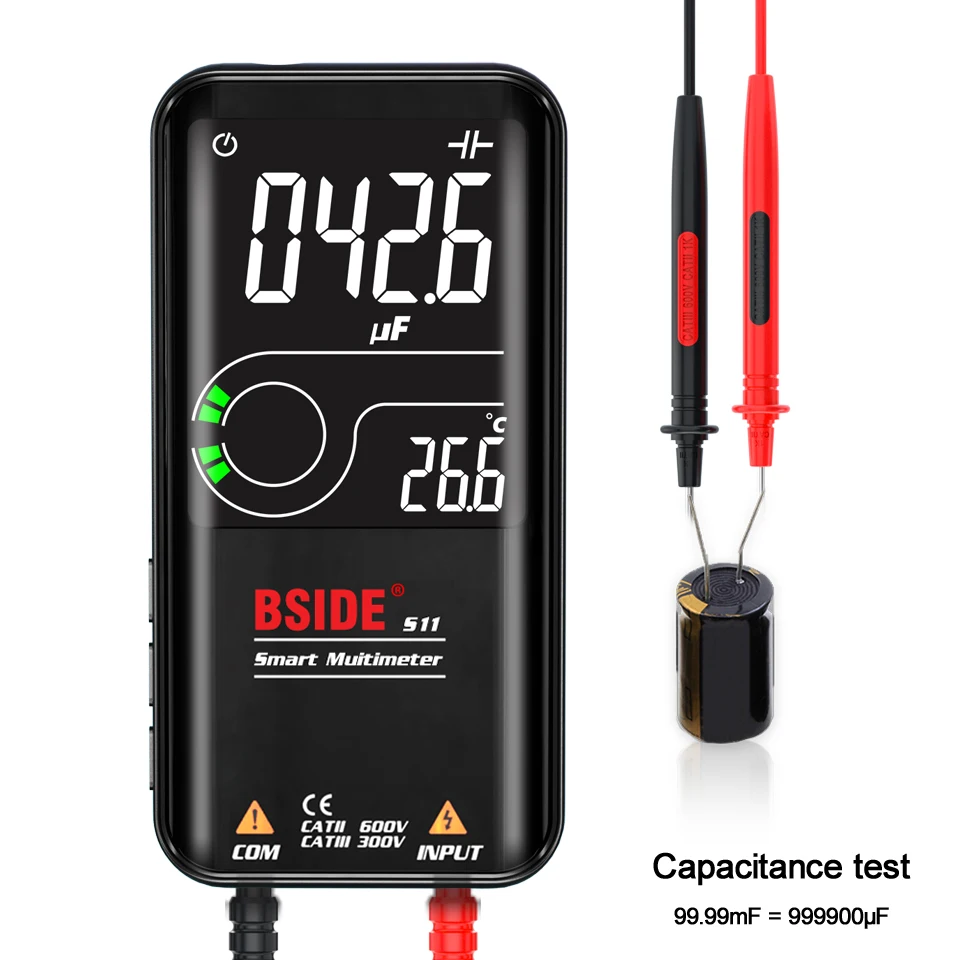

Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF
Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V);
Resolution: 0.001Hz
Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%

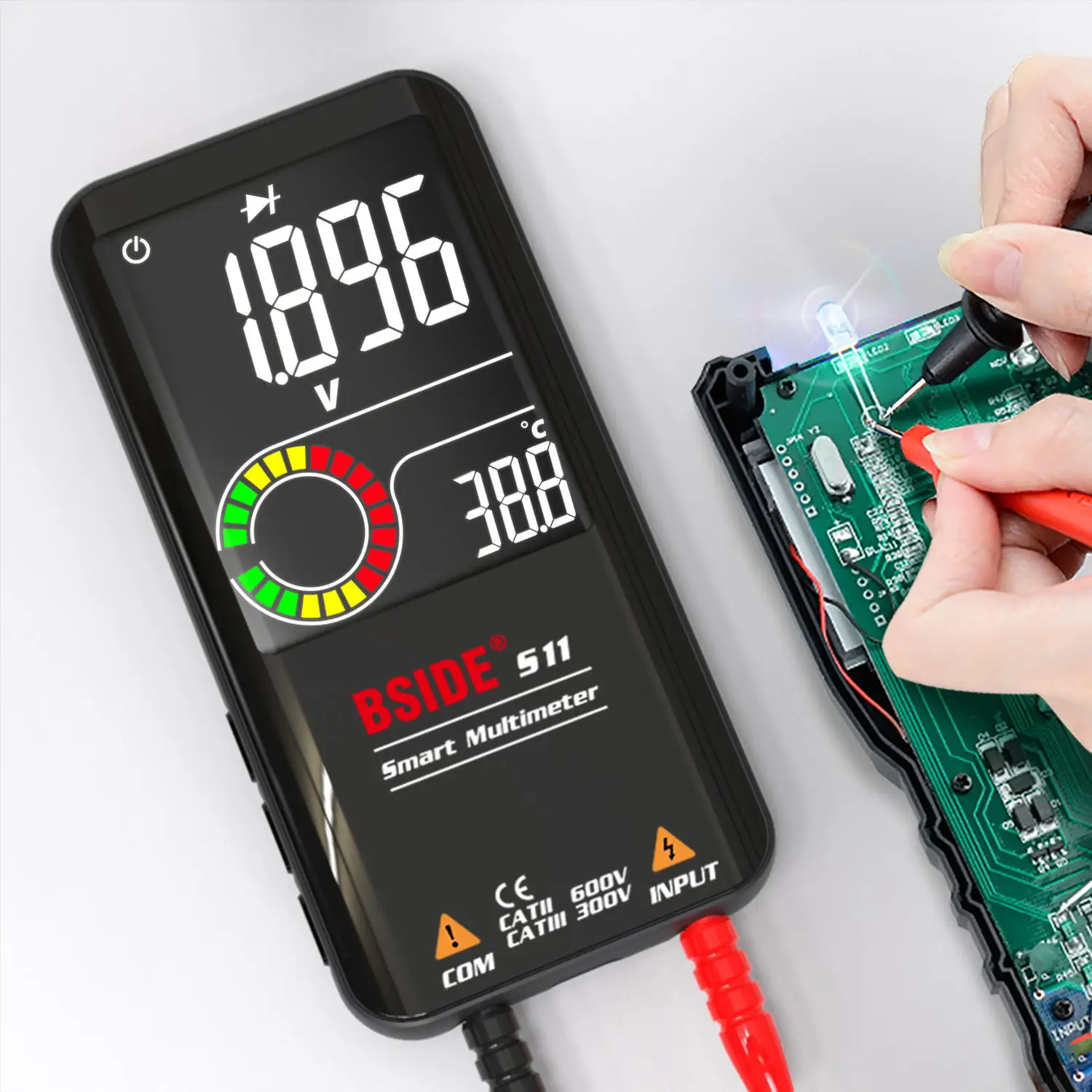

Diode: Auto identify diode if less than 3.0V

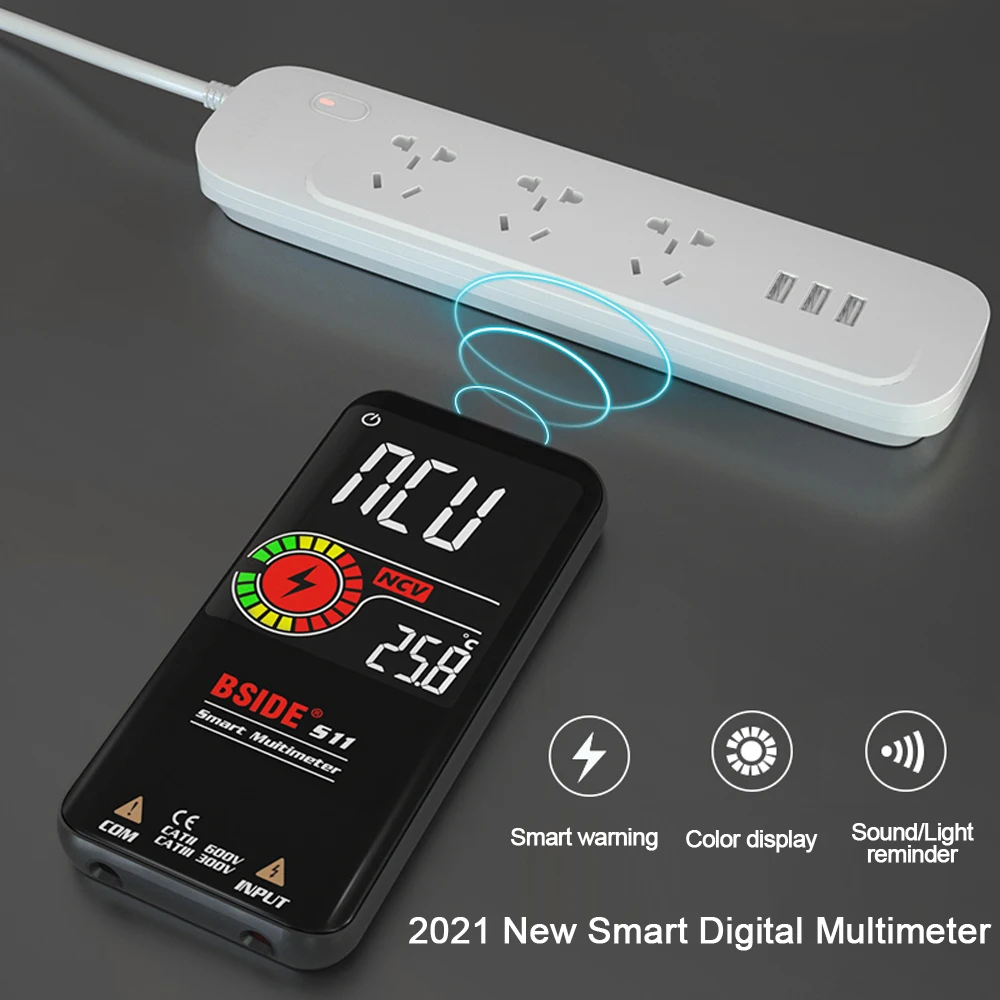

V-Alert(non-contact voltage detection): beep alarm sounds
Live Check: alarm beep sounds, LCD screen display stripe
[Color LCD Display]: Color LCD display greatly enhance the reading experience, the lighted up numbers & letters with black background make it very easy to read, even in bright sunlight or poor light.
3 Results Display]: High resolution large screen can show 3 test results on the screen, such as voltage, frequency and analog bar.
[Automatic Identification]: Automatic identification greatly improves your test efficiency. BSIDE smart technology make this multimeter can automatically identifies the tested parameters and choose their required range.

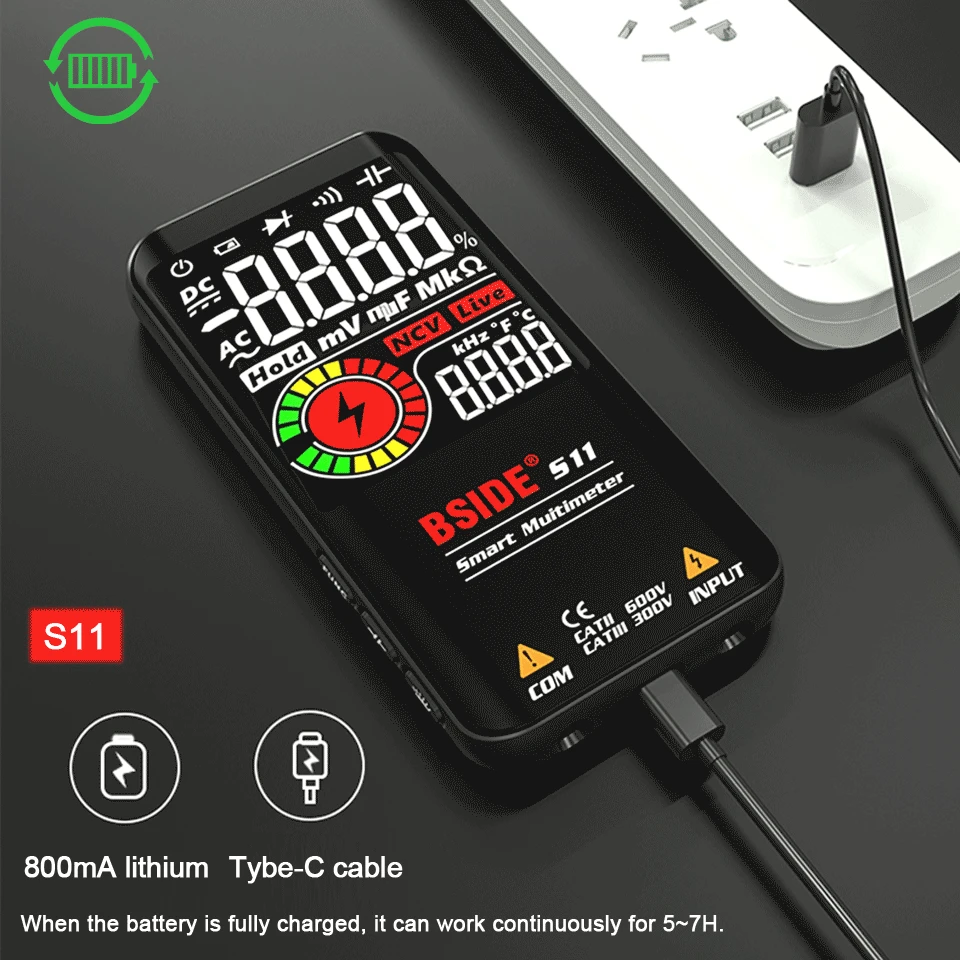

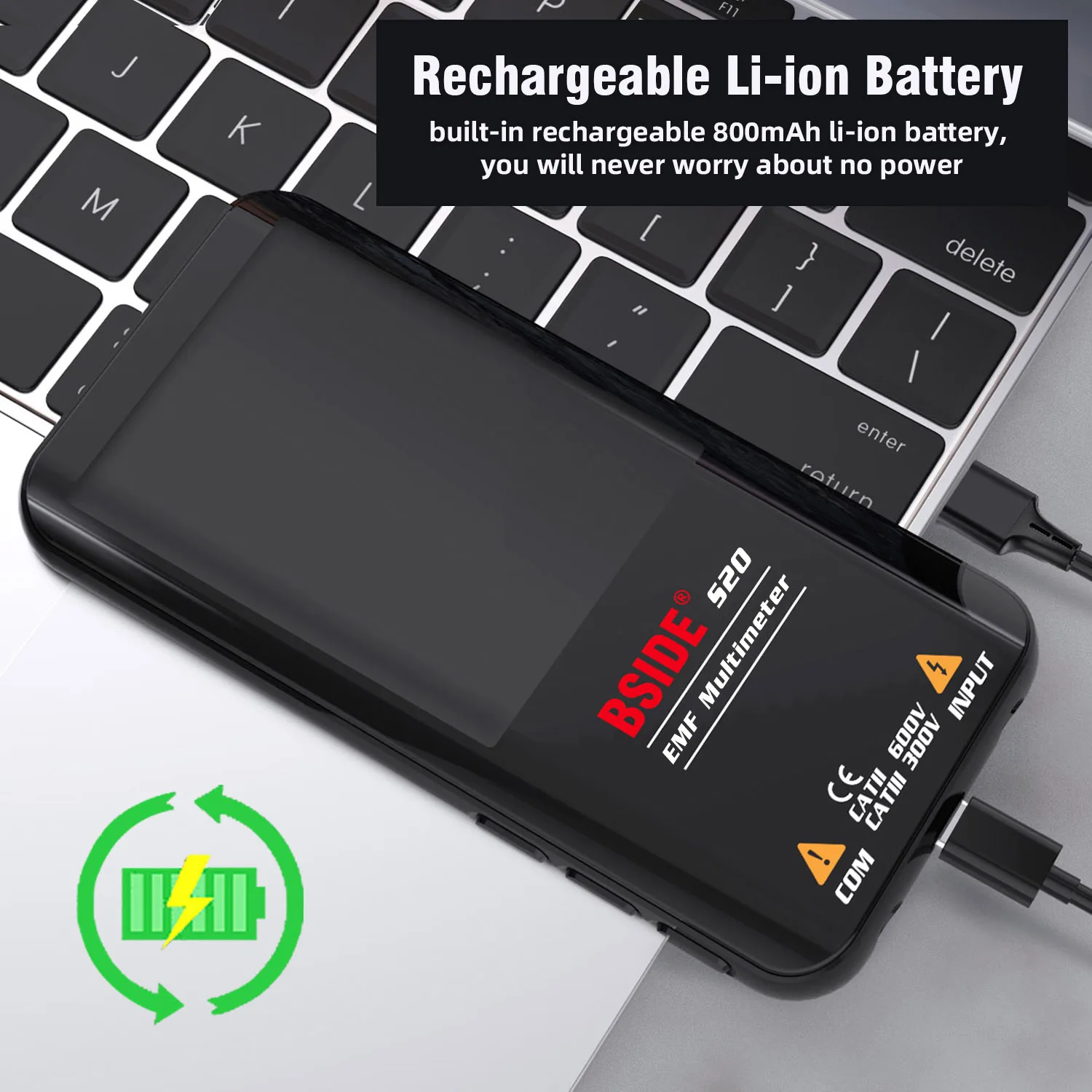

[Rechargeable]: Come with a rechargeable li-ion battery & charging cable, you will never worry about power problem.

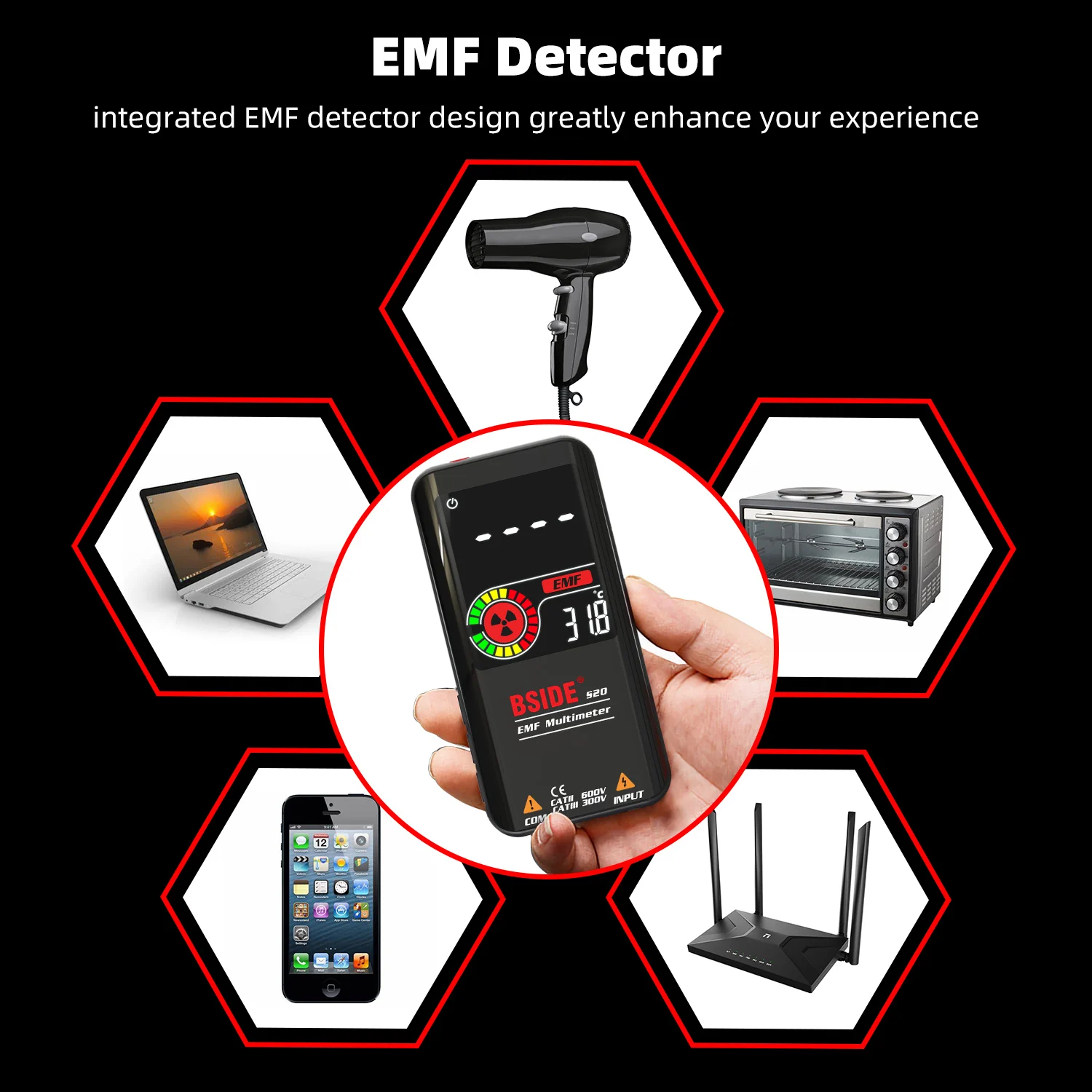

[EMF Detector]: Integrated EMF detector design greatly enhance your experience, suitable for home, office, factory, outdoor, etc.
S20 Specifications:
Max Display: 9999 counts
Display Type: Color display
Screen: 3.5 inch
DC Voltage: 0.5V-620V ±(0.8%+3); Resolution: 0.001V
AC Voltage: 1.0V-620V ±(1.2%+5); Resolution: 0.001V
Resistance:1Ω-10.0MΩ ±(1.2%+3); Resolution: 0.1Ω
Capacitance: 0.5uF-1000uF ±(3.5%+8), 1000uF-6000uF ±(4.5%+10); Resolution: 0.1uF
Frequency: 10Hz-1000Hz ±(2.0%+10); Resolution: 1Hz
Diode: Measure diodes within 1.0V
EMF Detect: alarm beep sounds, LCD screen display stripe
Live Check: alarm beep sounds, LCD screen display stripe
Continuity: If the resistance is less than 30Ω, the beeper sounds
Power: Rechargeable 3.7 V * 1 battery (included)
Size: 143*69*17mm
Weight: 320g

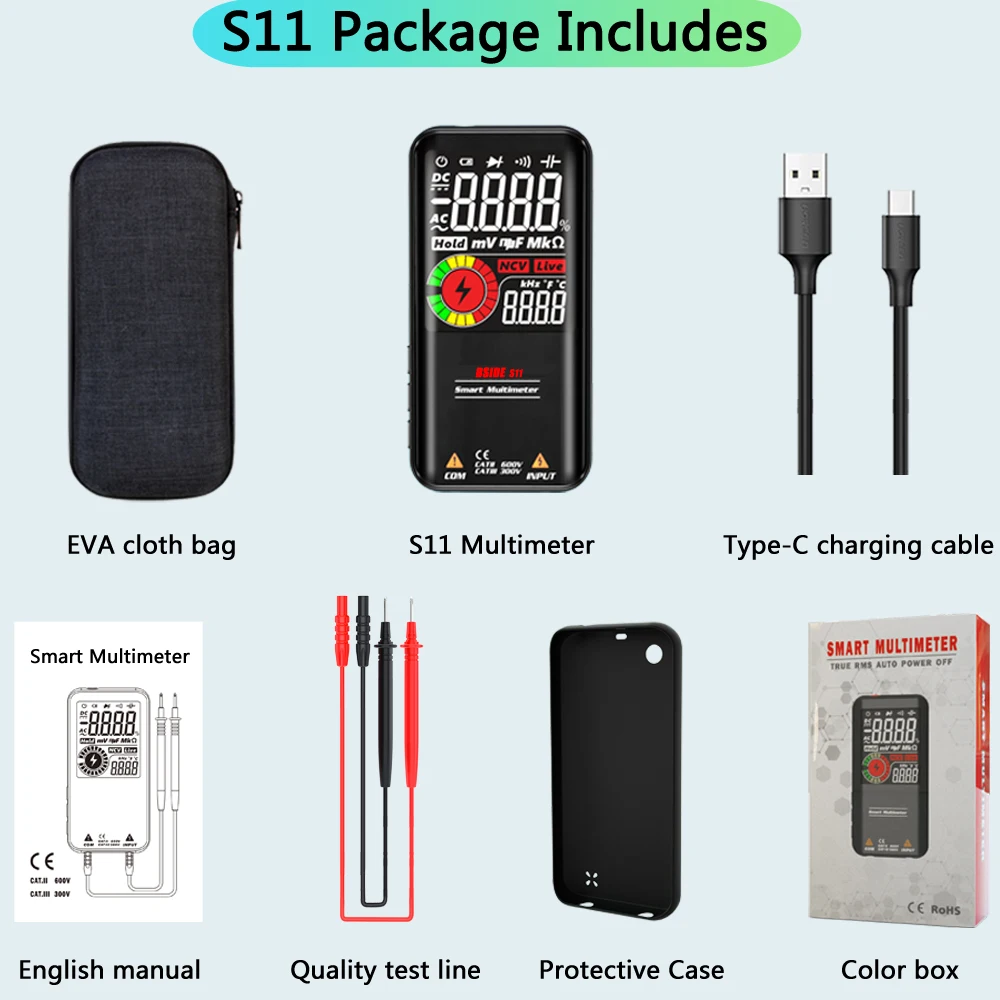

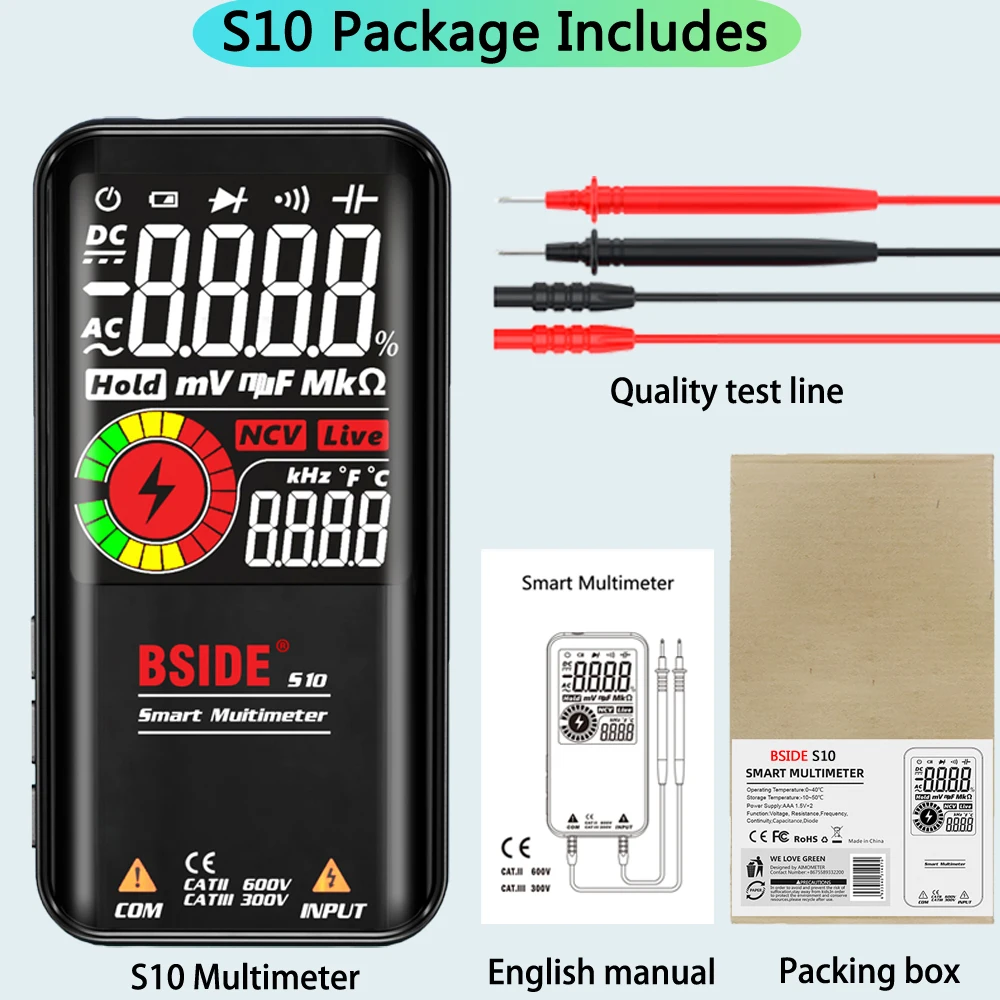

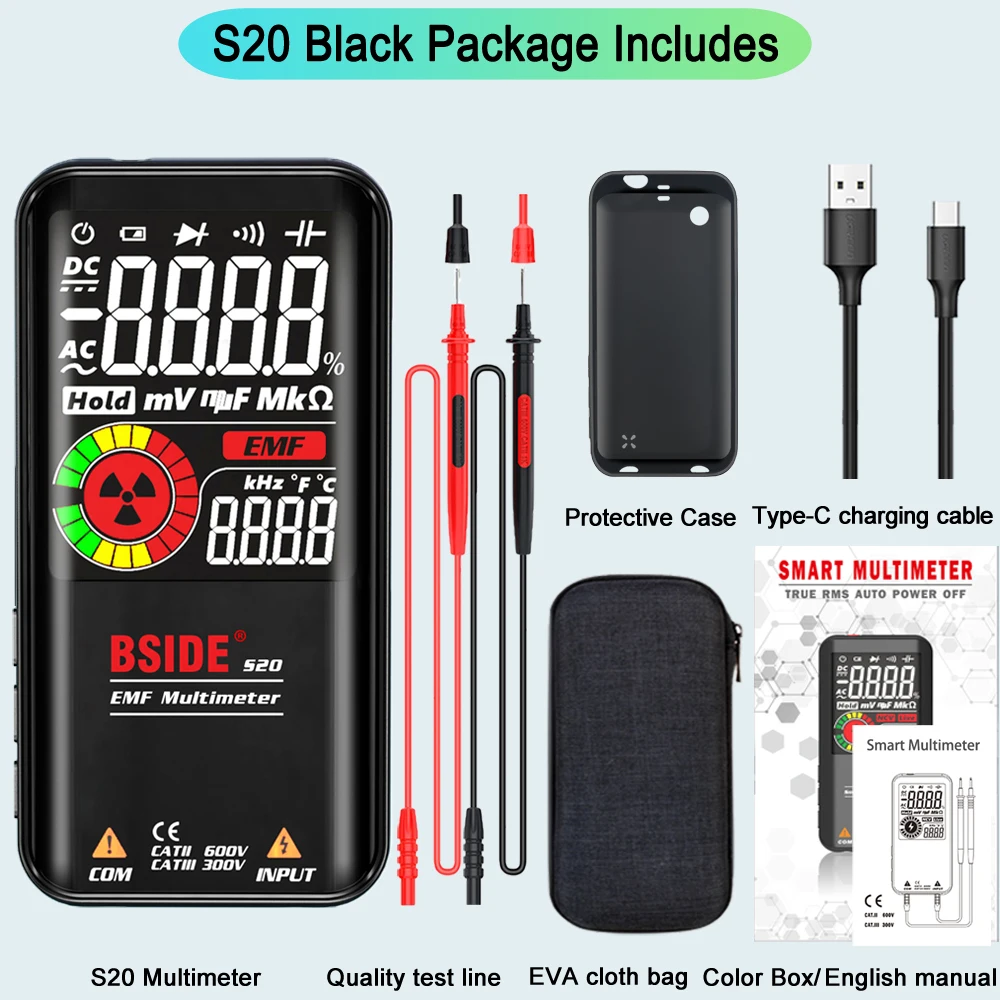

Package Includes:
1 * Multimeter. 1 * Test Lead.
1 * English user Manual. 1 * Packing Box.
1 * USB charging cable.（S11/S20）
1 * EVA portable cloth bag.（S11/S20）
1 * Protective shell.（S11/S20）
