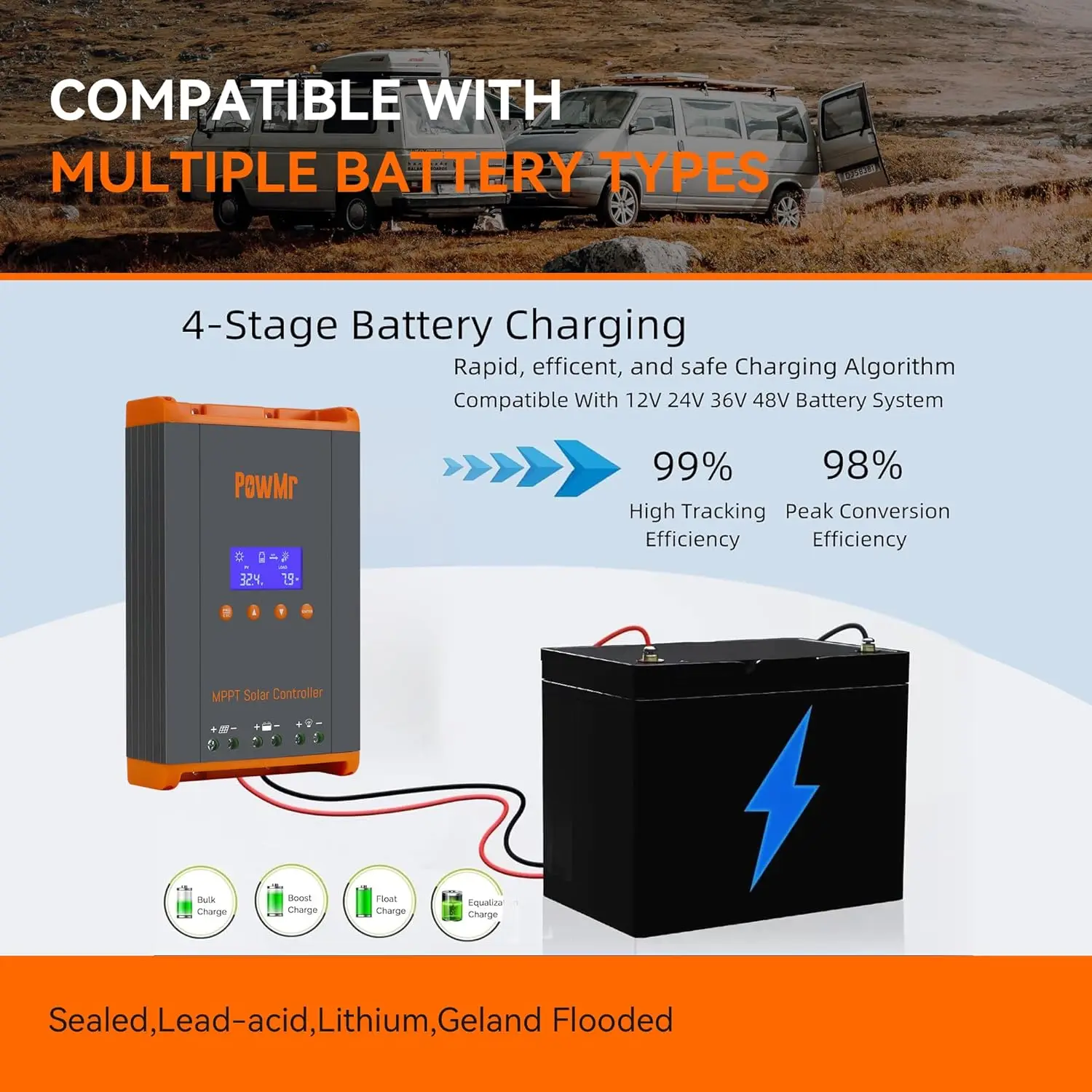

Multiple Battery Adaptation Fit for USER(can be set Lithium, Lifepo4, Li(NiCoMn)O2)/Vented/Flooded/Sealed/Gel/NiCd battery. User programmable for absorption voltage/Floating voltage/Low voltage disconnect./Load Timer. Real-time energy recording. Two connectors for each pos and negs on solar and batteries connectors. copper wires:9AWG
Full System Protection Backlight LCD Dispaly PV voltage/output power/Battery voltage/charging current/working mode/Temperature. ☀ TROUBLESHOOTING function and LCD display and can help users not only check the whole system operating data and statuses but also quickly identify system faults and modify parameters

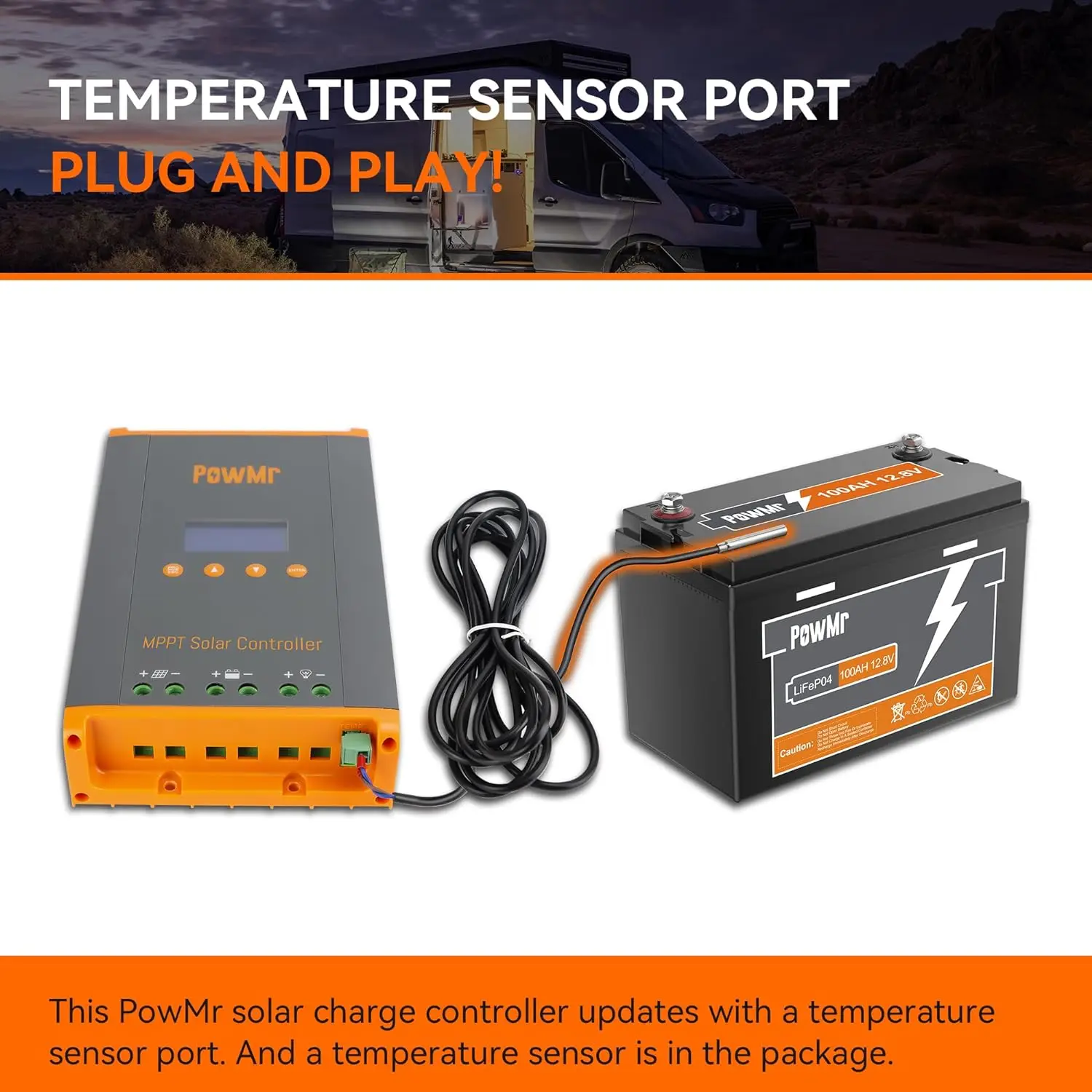

Plug and Play Temperature Sensor This PowMr solar charge controller updates with a temperature sensor port. And a temperature sensor is in the package. Installing this is a breeze. Plug and play!

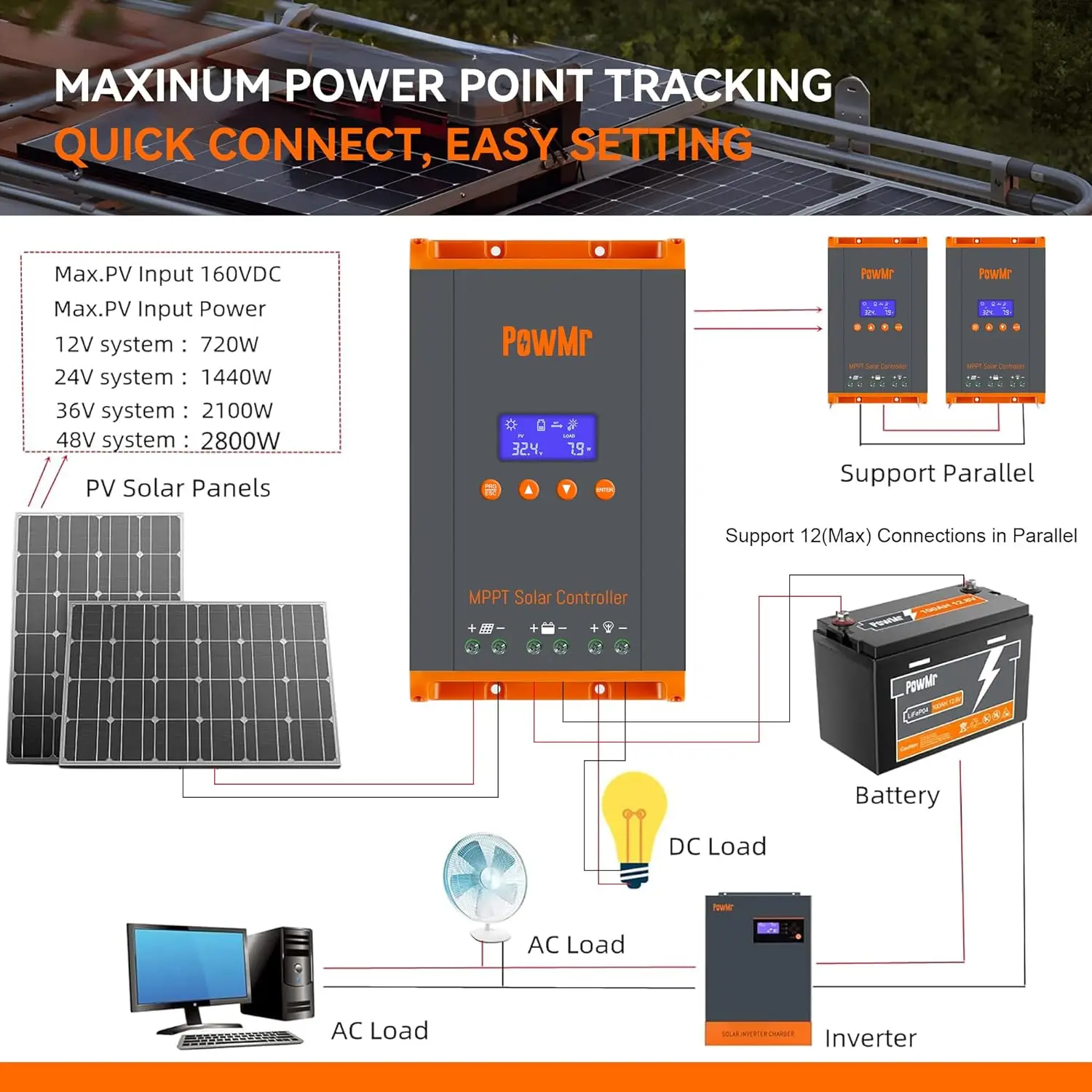

Supports Up to 12 Units in Parallel
The parallel operation function allows for easy expansion of the solar panel configuration and
energy storage capacity limits, thus increasing the scale of energy storage. For detailed parallel
operation guidelines, refer to Section 7.

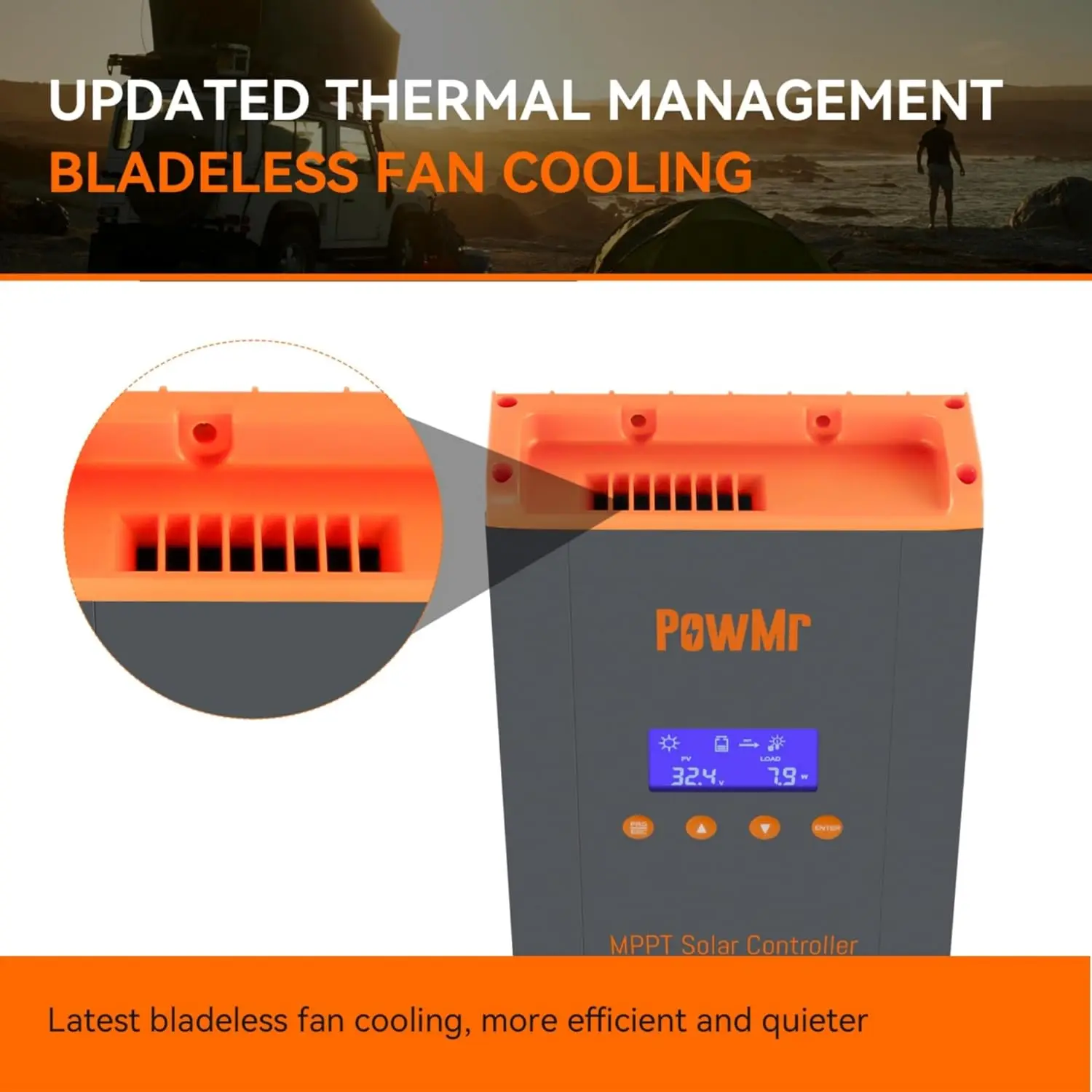

Forced Air Cooling
Built-in cooling fan for forced heat dissipation, improving overall device operational efficiency.
Lithium Battery Activation
Compatible with lithium batteries. When the battery type parameter is set to lithium batteries, the
charging cycle will be adjusted to accommodate the needs of lithium battery charging. Additionally,
when connected lithium batteries are in a protected state, the controller will activate the lithium
batteries with the energy from the solar panels, with current not exceeding the lithium battery
protection voltage and current range.
Product Specification
Models
|
HHJ60-PRO
|
Solar Input Parameters
|
|
Max. Solar Array Open-Circuit Voltage
|
160V
|
Maximum Input Power:
For 12V System
For 24V System
For 36V System
For 48V System
|
720W
1440W
2100W
2800W
|
Input Voltage Range:
For 12V System
For 24V System
For 36V System
For 48V System
|
20V~80V
37V~105V
50V~160V
72V~160V
|
Battery Charging Parameters
|
|
Charging Technology
|
MPPT
|
Charging Algorithm
|
3 stages
|
Battery Voltage Auto-Detection
12V System
24V System
36V System
48V System
|
DC9V~DC15V
DC18V~DC29V
DC30V~DC39V
DC40V~DC60V
|
Overcharge Protection Voltage
|
60V
|
Charging Limit Current
|
61A
|
Maximum Efficiency
|
≥98. 1%
|
Solar Utilization Rate
|
≥99%
|
Load Terminal Output
|
|
Rated Output Current
|
6A
|
Maximum DC Output Current
|
8A
|
Protection
|
|
Temperature Protection
|
75℃ / 167 ℉
|
Fan Start Temperature
|
>45℃ / 104℉
|
Fan Shutdown Temperature
|
<40℃ / 95℉
|
General Specification
|
|
Electromagnetic Compatibility
|
EN61000, EN55022, EN55024
|
Protection Level
|
IP21
|
Operating Temperature
|
-20℃ ~ +55℃ / -4℉ ~ 131℉
|
Storage Temperature
|
-40℃ ~ +75℃ / -40℉ ~ 167℉
|
