Reolink-Chime-Specifications |
|||||
Picture |
|||||
Model |
Reolink Chime |

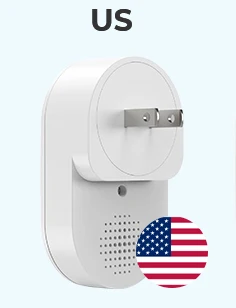

US Version |
EU Version |
UK Version |

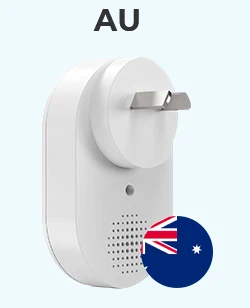

AU Version |
Physical |
Material |
ABS+PC |
|||
Dimensions |
86.5 x 29 x 45.2 mm |
86.5 x 29 x 66 mm |
86.5 x 29 x 52 mm |
86.5 x 30.6 x 47.6 mm |
|
General |
Input |
AC 100-240 V; 50-60 Hz |
|||
Button |
For setting up/selecting ringtones/adjusting volumeTransmission Mode RF 433 MHz |
||||
Volume |
5 levels |
||||
Number of Selectable Ringtones |
10 ringtones |
||||
Working Environment |
Temperature: -20℃~50℃; Humidity: <85% |
||||
Warranty |
Limited Warranty |
2-year limited warranty |

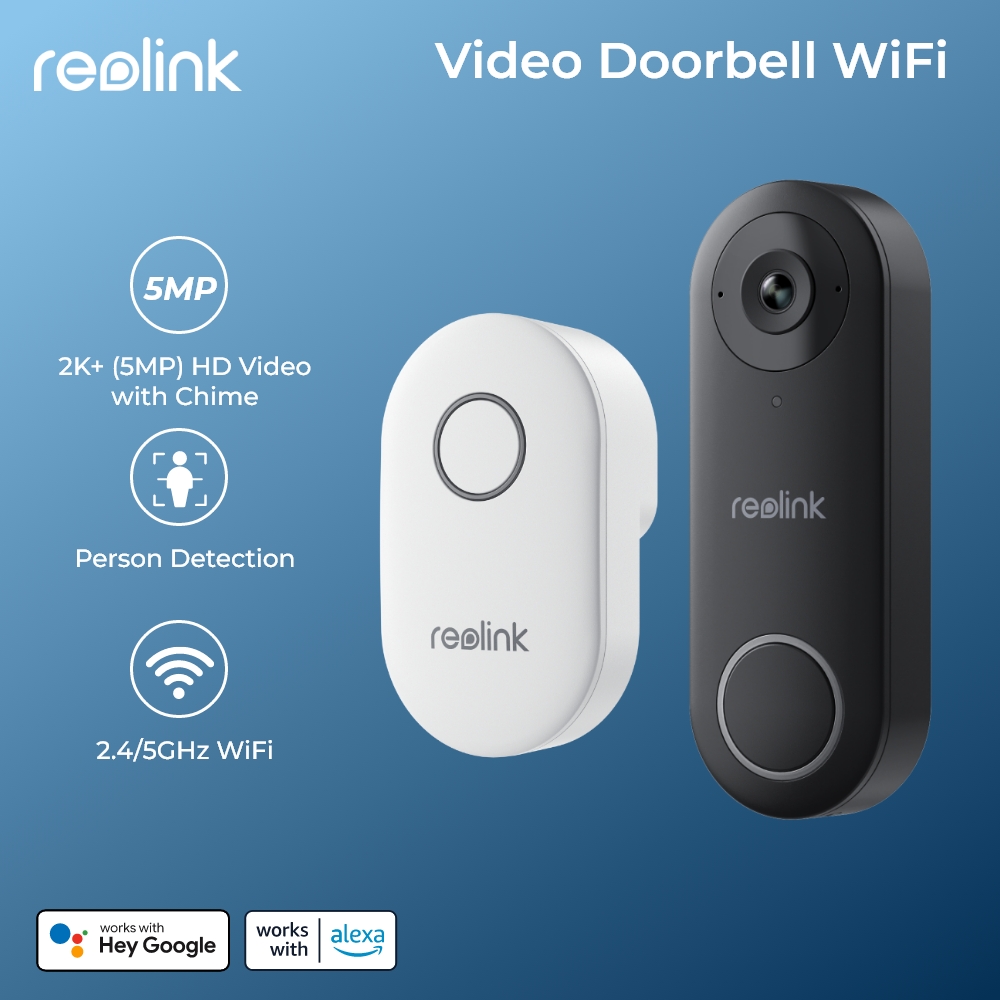

Reolink 2K+ Video Doorbell Smart Outdoor Home Video Intercom with Chime

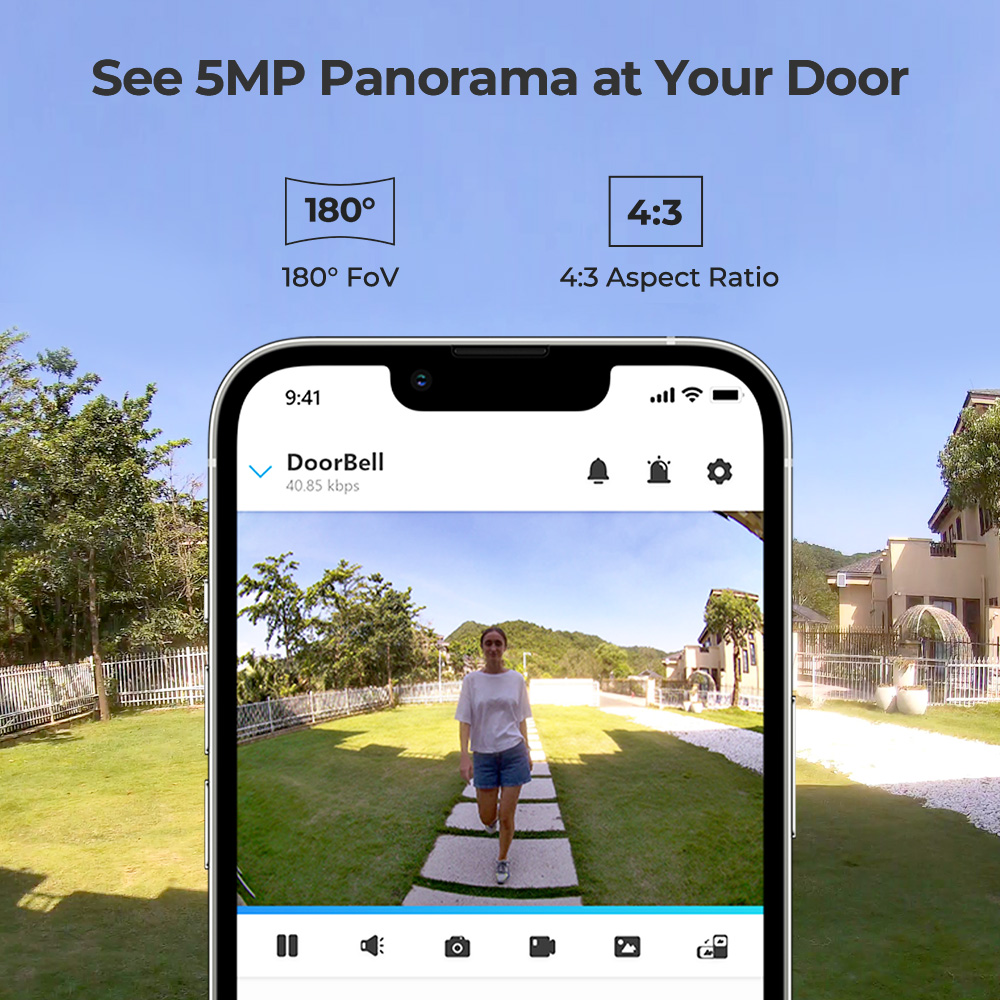

2K+ Incredible Clarity & 180° wide view
2K+ (5MP) resolution 180 °FOV means much more information and a wider range. Individuals will be easier to see with more detail.
Person Detection & Custom Motion Zone
The doorbell can alert you only when a person is detected, ignoring trivial non-human passers-by. You can also set a motion zone to black out areas prone to unnecessary alarms.

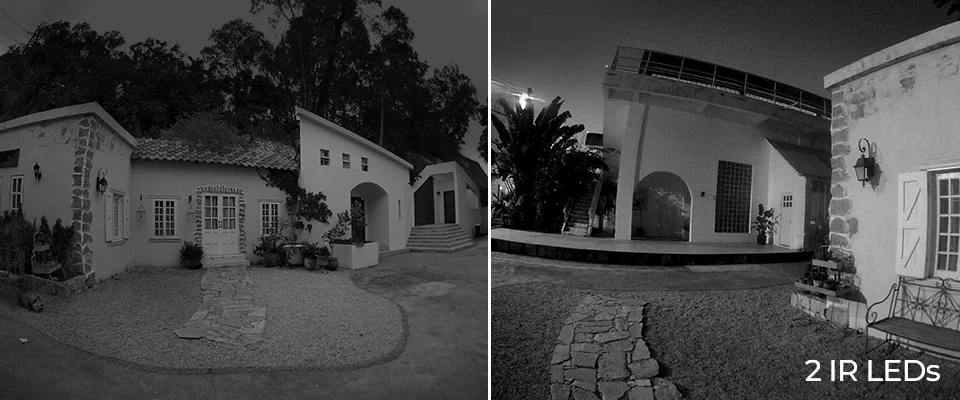

Keep Watch Through Nights
Its infrared LED enables high-quality night recording videos. Knowing who’s there even in the dark.
2-way Audio, Quickly, Instantly, Communicatively
Reolink Video Doorbell has built-in mics and a speaker. Take your time greeting the visitor before hurrying to the door, deter the unwanted visitors with no delay, or live talk with the visiting friends when you’re not at home.

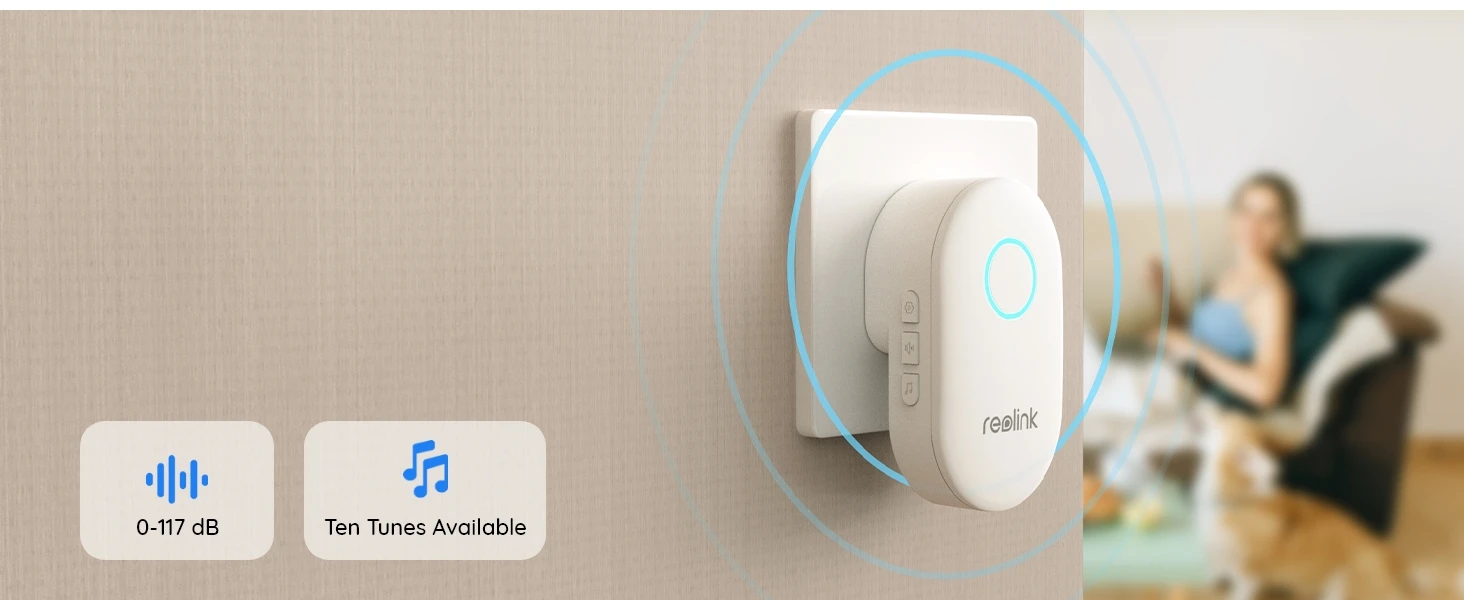

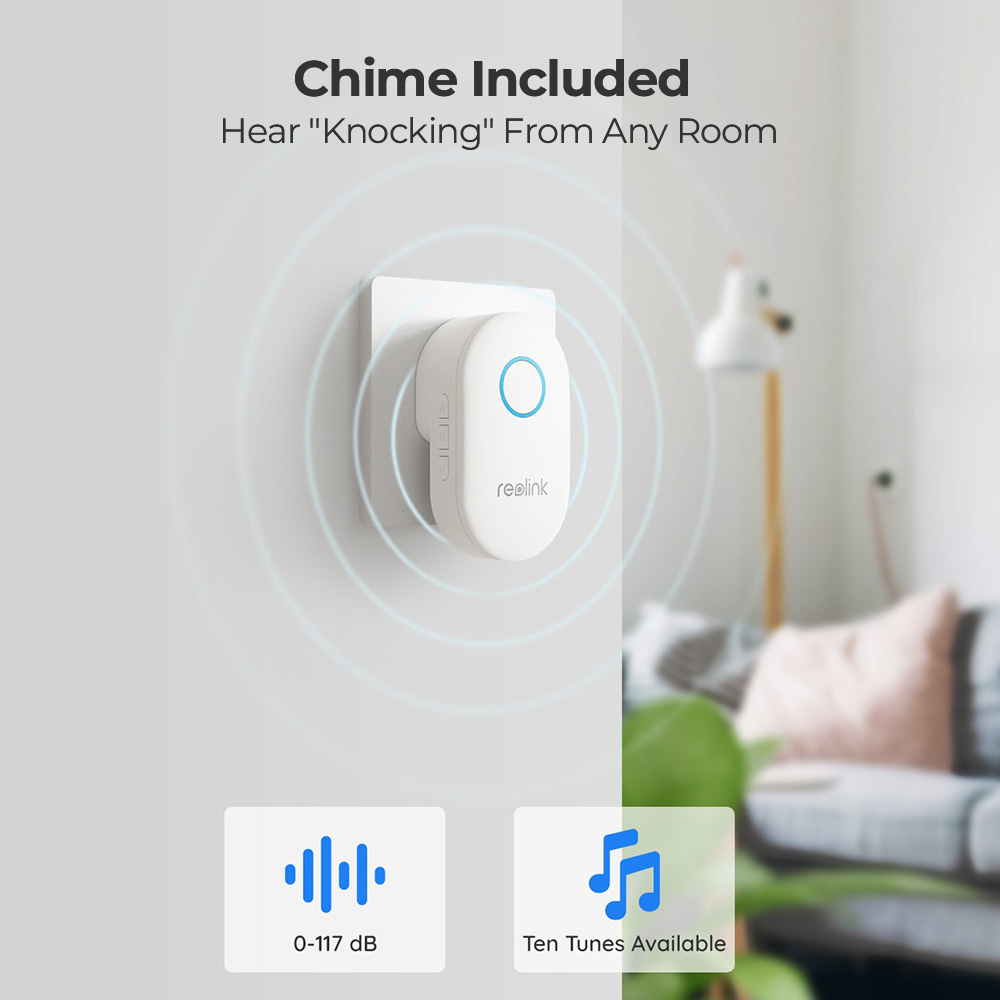

Video Doorbell with chime

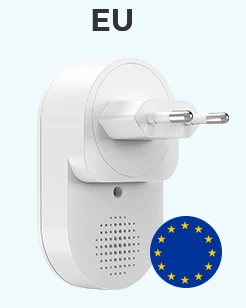

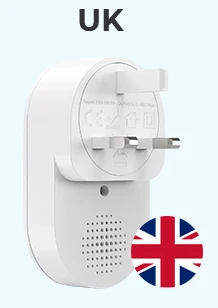

Just plug it into any electrical socket in any room and be confidently alerted when visitors knock.*Please note that Chime is divided into four plug specifications: US/UK/EU/AU. Please choose the option that meets your needs according to the warehouse configuration instructions at the top of the page.

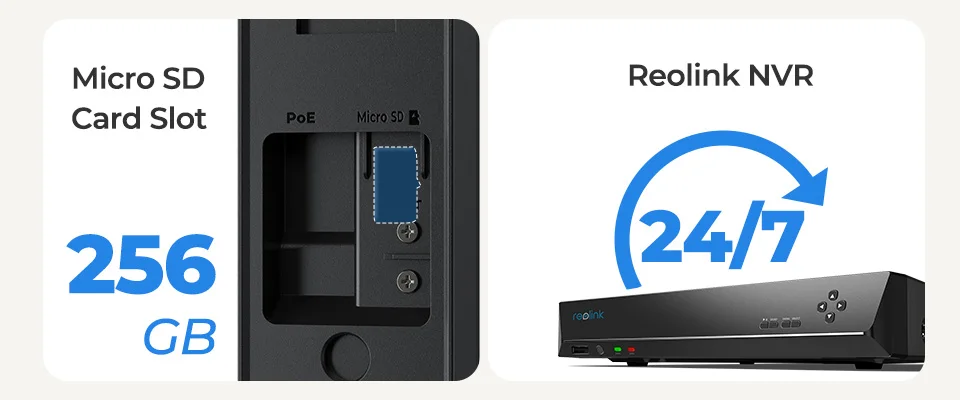

Flexible Storage Options
You can save your recordings locally to a Micro SD card (up to 256GB) or to a Reolink NVR.
*The regular packaging list does not include SD card. If necessary, please choose the option with SD card to purchase
Voice Control, Free your hands
Compatible with Google Assistant, Alexa Show for voice control and real-time monitoring.

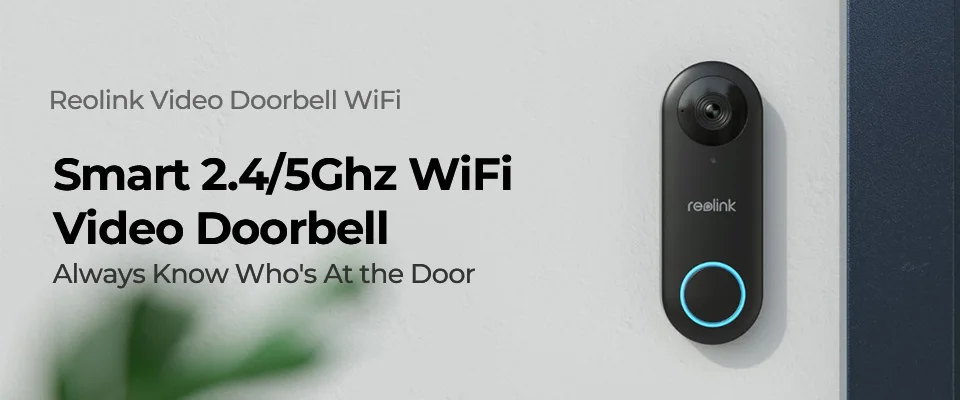

WIFI – Video doorbell, Easy to use

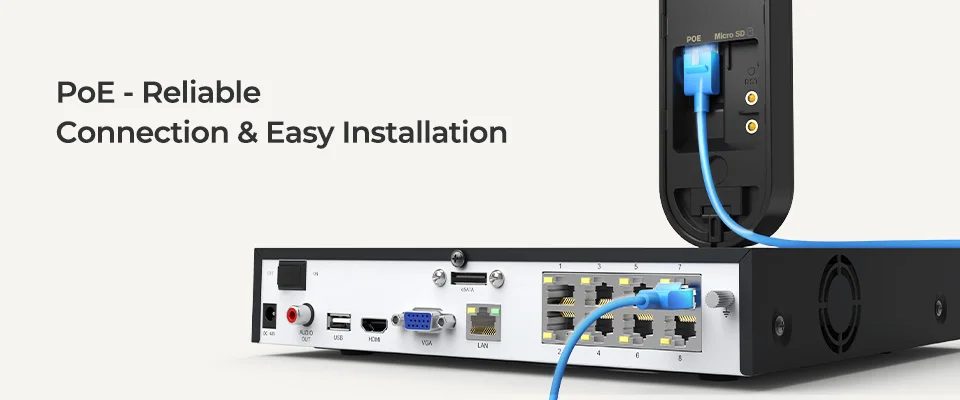

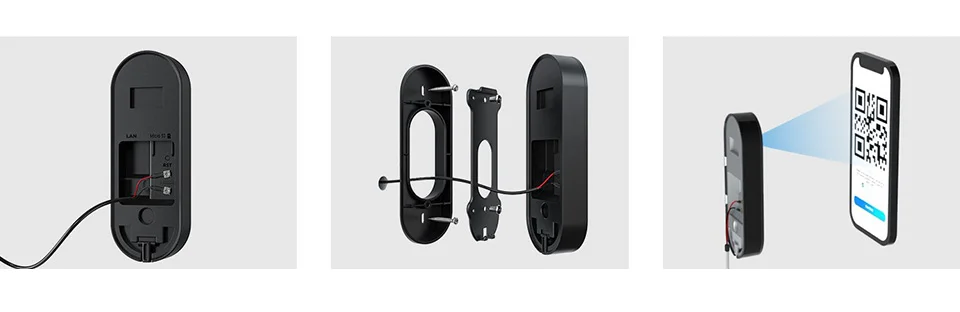

PoE – Reliable Connection & Easy Installation

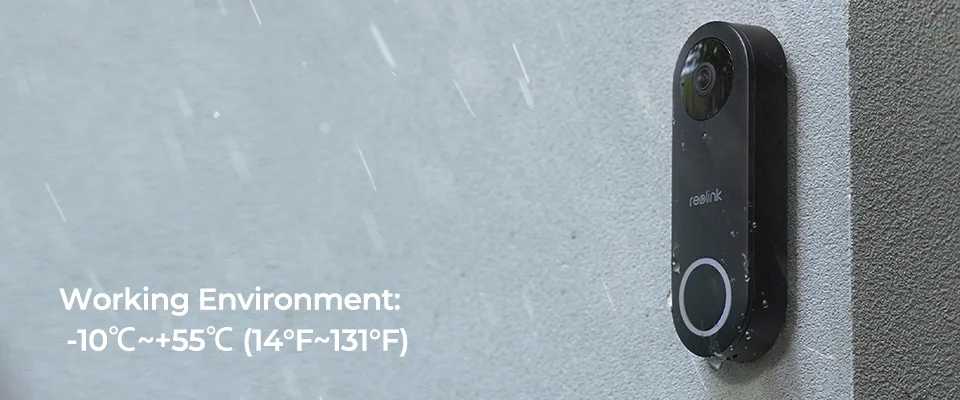

Rely on It, Rain or Shine
With its waterproof design, the video doorbell is suitable for harsh weather conditions and performs well regardless of rain or shine.

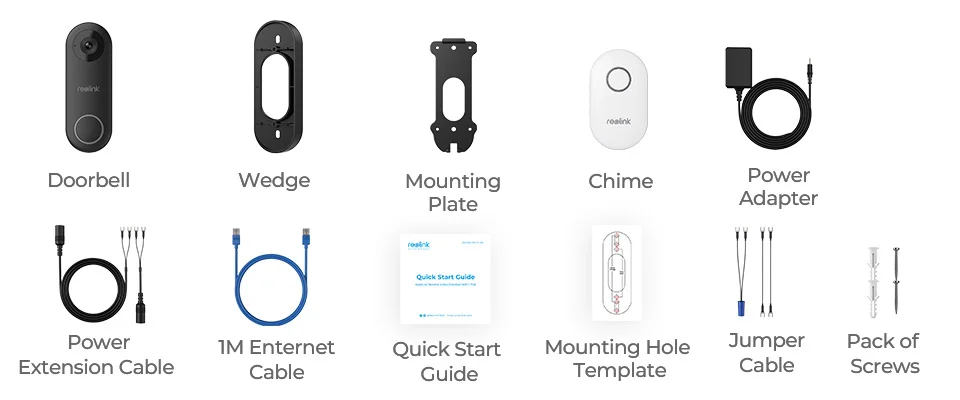

What’s in the box -Doorbell WiFi

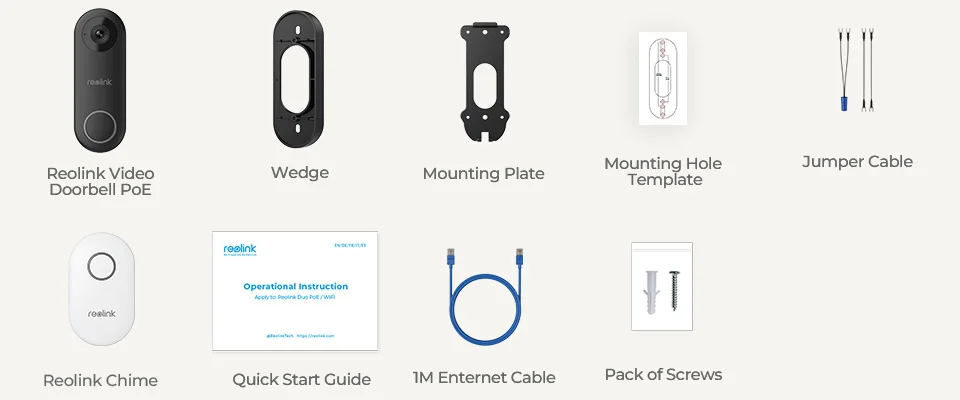

What’s in the box -Doorbell POE
Comparison of Product Parameters |
|||
Picture |
|||
Model |
Reolink Video Doorbell WiFi |
Reolink Video Doorbell PoE |
|
Video & Audio |
Image Sensor |
1/2.7″ CMOSSensor |
|
Video Resolution |
Default: 2560X1920 (5 megapixels) @20FPS |
||
Lens |
f=2.26mm F=2.0, with IR cut |
||
Video Format |
H.264 |
||
Field of View |
Horizontal: 134° |
||
Vertical: 97° |
|||
Diagnal: 180° |
|||
Pre-Motion Recording |
Support |
||
Audio |
Two-way audio, Noise reduction, Echo Suppression |
||
Quick Replies |
Support |
||
Power |
Hardwired |
12-24VAC 50/60Hz, DC 24V |
|
PoE |
x |
IEEE 802.3af, 48V Active; |
|
Interfaces |
Power |
Power port |
|
System |
Reset button |
||
Ethernet |
One 10M/100MbpsRJ45 |
||
Storage |
Micro SD card slot (Max. 256GB), Reolink NVR |
||
Audio |
Built-in 2 Microphones & Speaker |
||
WiFi |
Wireless Standard |
IEEE 802.11a/b/g/n |
x |
Operating Frequency |
2.4GHz/5GHz |
x |
|
Wireless Security |
WPA-PSK/WPA2-PSK |
x |
|
Software |
Frame Rate |
Mainstream: 2fps – 20fps (default: 20fps) |
|
Substream: 4fps – 15fps (default: 10fps) |
|||
Code Rate |
Mainstream: 1024Kbps – 6144Kbps (default: 4096Kbps) |
||
Substream: 64Kbps – 512Kbps (default: 256Kbps) |
|||
Browsers Supported |
Edge, Chrome, Firefox, Safari |
||
OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
||
Smart Alarm |
Motion detection/Person detection/Visitor detection |
||
Recording Modes |
Motion recording (default)/scheduled recording |
||
Protocols & Standards |
HTTPS, IPv4, UPNP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
||
Work with |
Google Assistant |
||
Rich Notification |
Support |
No |
|
Working Environment |
Temperature |
Operating temperature: -10°C~+55°C(14°F~131°F) |
|
Humidity |
Operating humidity: 10% ~ 90% |
||
Waterproof |
Support |
||
Size & Weight |
Dimension |
133mm(H)x48mm(W)x23mm(T) |
|
Weight |
96g |
||
Warranty |
Limited Warranty |
2-year limited warranty |
